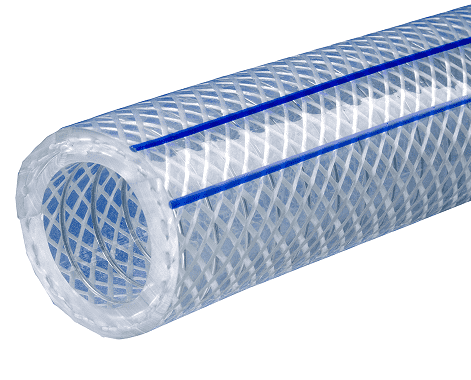

K7300-32X25 Kuri-Tec by Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 2" ID | 2.600" OD | 25ft Length

Save $142.98

$500.43

$500.43 - $500.43

$500.43

$357.45

$357.45 - $357.45

$357.45

Kuriyama Kuri Tec® POLYWIRE® PLUS Series K7300 Hose Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose A unique crystal clear PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

Package Quantity: 25 FT

Specifications for Variant SKU: K7300-32X25 Kuriyama \| 25 \|
Brand:	Kuri Tec
Series:	K7300 Series
Hose Color(s):	White/Off-White & Clear/Semi-Clear
Internal Diameter:	2in
Outer Diameter:	2.60in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Pressure and vacuum applications which require excellent kink resistance, Ideal for applications which require the hose to withstand both high vacuum and pressure, Water transfer, Liquid food transfer,	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	The inner food contact surface is made with PVC compound formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement:	High tensile yarns and helically-wound spring steel wire	Cover:	N/A
Temperature Range:	+15 deg. F (-9 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), FDA(03), NSF(13), RoHS(15), USDA(17)
Wire helix reinforcement prevents kinking or collapsing, hose diameter will not expand under normal rated working pressures. 29.9" Hg vacuum rating @ 70 deg. F. Electrogalvanized helical steel wire can be used for static dissipation (see below **). Yarn reinforcement provides higher working pressure. Heavy duty construction prevents hose O.D. from expanding and I.D. from collapsing. Crystal clear - allows visual confirmation of product flow Glass-smooth interior - reduces material buildup. Inner contact surface material is NSF certified for food applications (standard 51). It also meets other criteria such as 3A and USDA. Resistant to chemicals (see chemical-resistance chart in Kuri Tec Catalog). Self-extinguishing. Non-marking. Non-toxic. Silicone-free.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg	Min. Bend Radius
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coils		@ 70 deg. F
K7300-08X100	1/2"	12.7mm	.906"	23.0mm	250 PSI	125 PSI	100 ft.	26 lbs.	2"
K7300-08X50	1/2"	12.7mm	.906"	23.0mm	250 PSI	125 PSI	50 ft.	13 lbs.	2"
K7300-08X25	1/2"	12.7mm	.906"	23.0mm	250 PSI	125 PSI	25 ft.	6.5 lbs.	2"
K7300-12X100	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	100 ft.	40 lbs.	2-1/2"
K7300-12X50	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	50 ft.	20 lbs.	2-1/2"
K7300-12X25	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	25 ft.	10 lbs.	2-1/2"
K7300-16X100	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	100 ft.	53lbs.	3-1/2"
K7300-16X50	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	50 ft.	26.5lbs.	3-1/2"
K7300-16X25	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	25 ft.	13.3 lbs.	3-1/2"
K7300-20X50	1-1/4"	31.8mm	1.780"	45.2mm	175 PSI	87 PSI	50 ft.	37 lbs.	4-1/2"
K7300-20X25	1-1/4"	31.8mm	1.780"	45.2mm	175 PSI	87 PSI	25 ft.	18.5 lbs.	4-1/2"
K7300-24X50	1-1/2"	38.1mm	2.030"	51.6mm	175 PSI	87 PSI	50 ft.	43 lbs.	5-1/2"
K7300-24X25	1-1/2"	38.1mm	2.030"	51.6mm	175 PSI	87 PSI	25 ft.	43 lbs.	5-1/2"
K7300-32X50	2"	50.8mm	2.600"	66.0mm	150 PSI	75 PSI	50 ft.	64 lbs.	7"
K7300-32X25	2"	50.8mm	2.600"	66.0mm	150 PSI	75 PSI	25 ft.	32 lbs.	7"

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. ** Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
