M-BSPT-04-04 by Kurt Hydraulics | Male British Standard Pipe 60 Degree Cone | Rigid | for 1/4" Hose ID

Name: M-BSPT-04-04 by Kurt Hydraulics | Male British Standard Pipe 60 Degree Cone | Rigid | for 1/4" Hose ID
Brand: Kurt Hydraulics
SKU: M-BSPT-04-04 Kurt
Price: 5.87 USD
Availability: InStock

Save $3.91

$9.78

$9.78 - $9.78

$9.78

$5.87

$5.87 - $5.87

$5.87

by Kurt Hydraulics
M-BSPT - Male British Standard Pipe 60 deg. Cone Rigid

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: M-BSPT-04-04 Kurt
Series:	Braided Coupling Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Male BSPT
Special Properties:	Rigid

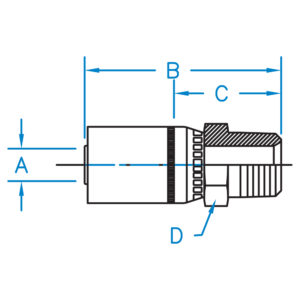

Part Number	A	B	C	D	Hose ID (In)	Thread
M-BSPT-04-02	0.250	N/A	N/A	N/A	1/4"	1/8-27
M-BSPT-04-04	0.250	2.315	1.060	11/16	1/4"	1/4-19
M-BSPT-04-06	0.250	2.404	1.149	11/16	1/4"	3/8-19
M-BSPT-06-06	0.375	2.665	1.165	3/4	3/8"	3/8-19
M-BSPT-06-08	0.375	2.917	1.417	7/8	3/8"	1/2-14
M-BSPT-08-06	0.500	2.740	1.243	7/8	1/2"	3/8-19
M-BSPT-08-08	0.500	2.995	1.506	7/8	1/2"	1/2-14
M-BSPT-12-12	0.750	3.104	1.511	1-1/8	3/4"	3/4-14
M-BSPT-16-16	1.000	3.451	1.717	1-3/8	1.000"	1-11

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
