M-BSPT-16-16 by Kurt Hydraulics | Male British Standard Pipe 60 Degree Cone | Rigid | for 1" Hose ID

M-BSPT-16-16 by Kurt Hydraulics | Male British Standard Pipe 60 Degree Cone | Rigid | for 1" Hose ID

Save $6.99 Save $6.99
$17.48
$17.48 - $17.48
$17.48
$10.49
$10.49 - $10.49
$10.49
by Kurt Hydraulics
M-BSPT - Male British Standard Pipe 60 deg. Cone Rigid
Kurt Fittings and Hose should only be used together.
Specifications for Variant SKU: M-BSPT-16-16 Kurt
Series: Braided Coupling Series
Shape (Orientation): Straight
Ends Configuration: 1in Hose Barb, 1in Male BSPT
Special Properties: Rigid

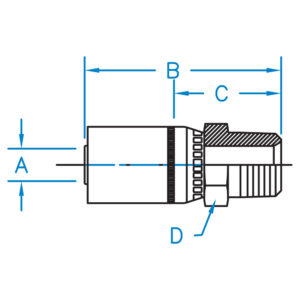

Part Number A B C D Hose ID
(In)		 Thread
M-BSPT-04-02 0.250 N/A N/A N/A 1/4" 1/8-27
M-BSPT-04-04 0.250 2.315 1.060 11/16 1/4" 1/4-19
M-BSPT-04-06 0.250 2.404 1.149 11/16 1/4" 3/8-19
M-BSPT-06-06 0.375 2.665 1.165 3/4 3/8" 3/8-19
M-BSPT-06-08 0.375 2.917 1.417 7/8 3/8" 1/2-14
M-BSPT-08-06 0.500 2.740 1.243 7/8 1/2" 3/8-19
M-BSPT-08-08 0.500 2.995 1.506 7/8 1/2" 1/2-14
M-BSPT-12-12 0.750 3.104 1.511 1-1/8 3/4" 3/4-14
M-BSPT-16-16 1.000 3.451 1.717 1-3/8 1.000" 1-11


Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
