M-BSPT-08-08 by Kurt Hydraulics | Male British Standard Pipe 60 Degree Cone | Rigid | for 1/2" Hose ID

Name: M-BSPT-08-08 by Kurt Hydraulics | Male British Standard Pipe 60 Degree Cone | Rigid | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: M-BSPT-08-08 Kurt
Price: 5.04 USD
Availability: InStock

Save $0.63

$5.67

$5.67 - $5.67

$5.67

$5.04

$5.04 - $5.04

$5.04

by Kurt Hydraulics
M-BSPT - Male British Standard Pipe 60 deg. Cone Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: M-BSPT-08-08 Kurt
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Male BSPT
Special Properties:	Rigid

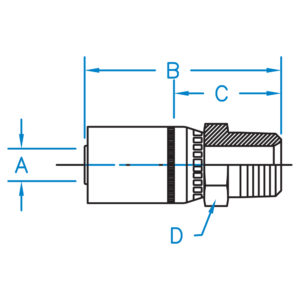

Part Number	A	B	C	D	Hose ID (In)	Thread
M-BSPT-04-02	0.250	N/A	N/A	N/A	1/4"	1/8-27
M-BSPT-04-04	0.250	2.315	1.060	11/16	1/4"	1/4-19
M-BSPT-04-06	0.250	2.404	1.149	11/16	1/4"	3/8-19
M-BSPT-06-06	0.375	2.665	1.165	3/4	3/8"	3/8-19
M-BSPT-06-08	0.375	2.917	1.417	7/8	3/8"	1/2-14
M-BSPT-08-06	0.500	2.740	1.243	7/8	1/2"	3/8-19
M-BSPT-08-08	0.500	2.995	1.506	7/8	1/2"	1/2-14
M-BSPT-12-12	0.750	3.104	1.511	1-1/8	3/4"	3/4-14
M-BSPT-16-16	1.000	3.451	1.717	1-3/8	1.000"	1-11
