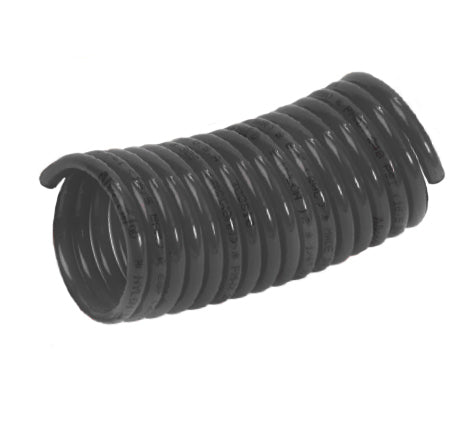

N1XX1-80 by Nycoil | Self-Storing Air Hose | 1" Hose ID | Black | 190 PSI | Nylon | 80ft Bulk

N1XX1-80 by Nycoil | Self-Storing Air Hose | 1" Hose ID | Black | 190 PSI | Nylon | 80ft Bulk

Save $71.57 Save $71.57
$872.66
$872.66 - $872.66
$872.66
$801.09
$801.09 - $801.09
$801.09

Nycoil® Nylon Self-Storing Air Hose Assemblies & Bulk Hose - 1" Hose ID

Package Quantity: 80 FT

Specifications for Variant SKU: N1XX1-80 Nycoil
Series: Nylon Self-Storing Air Hose
Hose Color(s): Black
Internal Diameter: 1in
Tubing Construction: Nylon
Overview:
  • Nycoil was the inventor of the Nylon Self-Storing Air Hose in 1958. It was developed as a means to transport air from overhead piping to pneumatic tools at assembly stations while keeping the work area neat and safe. Unlike straight hose that lays on the floor or workbench and can easily become tangled, Self-Storing Hose retracts to keep the area clutter free. The user can also be more productive because the hose retracts away from the work area, giving the user more clear space and freedom of movement.
  • Nylon is resistant to a wide variety of chemicals making it a good choice for most industrial environments.
Features:
  • Extremely light weight - considerably lighter than traditional rubber hoses
  • Economizes on space - retracts to a fraction of its working length
  • Highly flexible - doesn't impede tool maneuverability
  • Brass field attachable fittings - no ferrules or inserts that become deformed and have to be replaced whenever fittings are installed
  • Excellent memory - coils continue to retract after repeated stretching
  • Resistant to many chemicals & petroleum based products - suitable for numerous applications
  • Less than 1% moisture absorption
  • Recommended working length: up to 85% of material length
  • Temperature Range: -40 deg. F to +200 deg. F (-40 deg. C to +93 deg. C)
Part Number Hose ID Hose OD Nom. Coil ID Nom. Coil OD Working Pressure Length Fittings Working Length Nom. Compact Length Hose Color
inch inch inch inch PSI Bar feet feet inch
N1DS2-25* 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 25 ft 3/4" MPT, Swivel 12.5 ft 9" Red
N1DS1-25* 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 25 ft 3/4" MPT, Swivel 12.5 ft 9" Black
N1DS2-50* 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 50 ft 3/4" MPT, Swivel 25 ft 18" Red
N1DS1-50* 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 50 ft 3/4" MPT, Swivel 25 ft 18" Black

N1ER2-25* 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 25 ft 1" MPT, Rigid Barb 12.5 ft 9" Red
N1ER2-50* 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 50 ft 1" MPT, Rigid Barb 25 ft 18" Red
N1XX2-80 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 80 ft None (bulk) NA 27" Red
N1XX1-80 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 80 ft None (bulk) NA 27" Black
N1XX2-100 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 100 ft None (bulk) NA 32" Red
N1XX1-100 1" 1.197" 14" 16-1/2" 190 PSI 13.0 Bar 100 ft None (bulk) NA 32" Black

*3/4" & 1" Hose Assemblies do not require Spring Guards.

Nycoil

Nycoil

Since its inception in 1958, Nycoil has recognized the importance of Innovation. From the introduction of the original Self-Storing Air Hose over fifty years ago to the more recent development of our state of the art Poly-Matic Push-To-Connect Fittings, Nycoil has established itself as a leader in the Fluid Power and Industrial markets.
