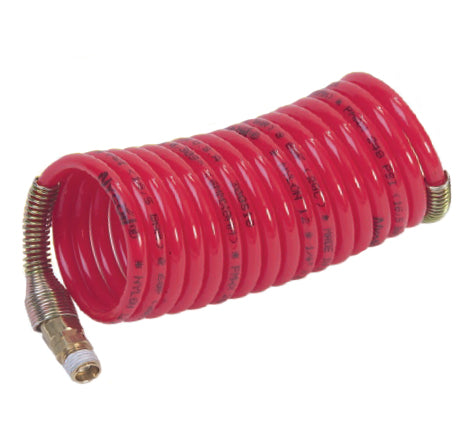

N8CS2-25 by Nycoil | Self-Storing Air Hose Assembly | 1/2" Hose ID | 1/2" MPT Swivel | Red | 220 PSI | Nylon | 25ft

N8CS2-25 by Nycoil | Self-Storing Air Hose Assembly | 1/2" Hose ID | 1/2" MPT Swivel | Red | 220 PSI | Nylon | 25ft

Save $7.51 Save $7.51
$91.64
$91.64 - $91.64
$91.64
$84.13
$84.13 - $84.13
$84.13

Nycoil® Nylon Self-Storing Air Hose Assemblies & Bulk Hose - 1/2" Hose ID
Specifications for Variant SKU: N8CS2-25 Nycoil
Series: Nylon Self-Storing Air Hose
Hose Color(s): Red
Internal Diameter: 0.50in
Tubing Construction: Nylon
Ends Configuration: 1/2in Male NPT, 1/2in Male NPT, Some Ends Match
Overview:
  • Nycoil was the inventor of the Nylon Self-Storing Air Hose in 1958. It was developed as a means to transport air from overhead piping to pneumatic tools at assembly stations while keeping the work area neat and safe. Unlike straight hose that lays on the floor or workbench and can easily become tangled, Self-Storing Hose retracts to keep the area clutter free. The user can also be more productive because the hose retracts away from the work area, giving the user more clear space and freedom of movement.
  • Nylon is resistant to a wide variety of chemicals making it a good choice for most industrial environments.
Features:
  • Extremely light weight - considerably lighter than traditional rubber hoses
  • Economizes on space - retracts to a fraction of its working length
  • Highly flexible - doesn't impede tool maneuverability
  • Brass field attachable fittings - no ferrules or inserts that become deformed and have to be replaced whenever fittings are installed
  • Excellent memory - coils continue to retract after repeated stretching
  • Resistant to many chemicals & petroleum based products - suitable for numerous applications
  • Less than 1% moisture absorption
  • Recommended working length: up to 85% of material length
  • Temperature Range: -40 deg. F to +200 deg. F (-40 deg. C to +93 deg. C)
Part Number Hose ID Hose OD Nom. Coil ID Nom. Coil OD Working Pressure Length Fittings Working Length Nom. Compact Length Hose Color
inch inch inch inch PSI Bar feet feet inch
N8CS2-12 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 12 ft 1/2" MPT, Swivel 9 ft 5" Red
N8CS5-12 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 12 ft 1/2" MPT, Swivel 9 ft 5" Yellow
N8CS1-12 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 12 ft 1/2" MPT, Swivel 9 ft 5" Black
N8CS2-25 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 25 ft 1/2" MPT, Swivel 18.75 ft 9" Red
N8CS5-25 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 25 ft 1/2" MPT, Swivel 18.75 ft 9" Yellow
N8CS1-25 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 25 ft 1/2" MPT, Swivel 18.75 ft 9" Black
N8CS2-50 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 50 ft 1/2" MPT, Swivel 37.5 ft 18" Red
N8CS5-50 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 50 ft 1/2" MPT, Swivel 37.5 ft 18" Yellow
N8CS1-50 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 50 ft 1/2" MPT, Swivel 37.5 ft 18" Black
N8XX2-100 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 100 ft None (bulk) NA 35" Red
N8XX5-100 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 100 ft None (bulk) NA 35" Yellow
N8XX1-100 1/2" 0.623" 6-1/2" 8" 220 PSI 15.3 Bar 100 ft None (bulk) NA 35" Black
