P200005 (P-1000) by PT-Coupling | PUNCH-LOK | Clamping & Banding Tool | Loking Tool For 5/8" Punch Clamps

P200005 (P-1000) by PT-Coupling | PUNCH-LOK | Clamping & Banding Tool | Loking Tool For 5/8" Punch Clamps

Save $23.15 Save $23.15
$208.34
$208.34 - $208.34
$208.34
$185.19
$185.19 - $185.19
$185.19
Specifications for Variant SKU: P200005 PT-Coupling
Brand: PUNCH-LOK
Series: Clamping & Banding Tool

PRODUCT DESCRIPTION

PT Coupling - PUNCH-LOK® - Clamping & Banding Tools
For use with:
Accessories:

Part
Name		 Item # Description Features
Clamping & Banding Tools

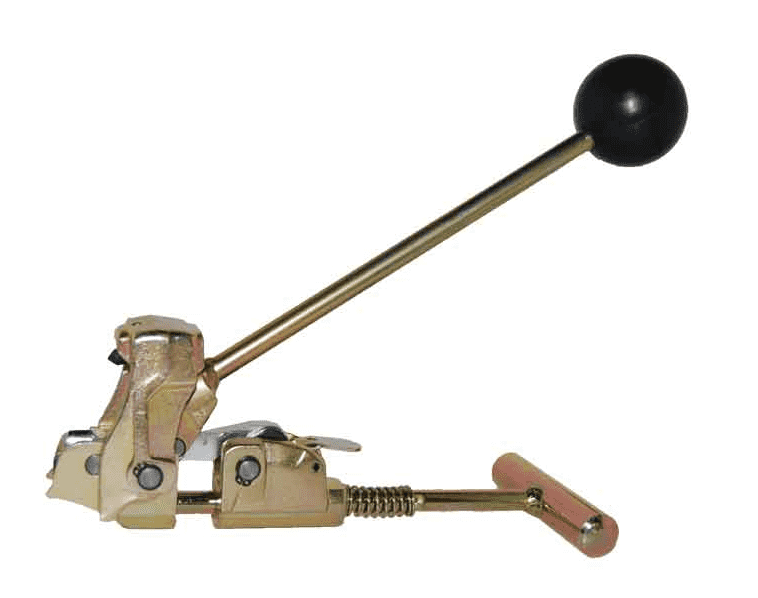

P-1000 P200005 Loking Tool For 5/8" Punch Clamps "The PUNCH-LOK® Tool" the original. Made like no other tool! Designed for fast, economical application of punch-type clamps. The portable P-1000™ weighs only 2 1/2 pounds. Drop forged and double plated tempered steel construction. For 5/8" clamps only.
P-1000™ & P-3000™ Replacement Parts
P-1000-D-229 P200007 Loking Tool For 3/8" & 5/8" Punch Clamps -
P-3000 P250004 Loking Tool For 3/8" Punch Clamps Only Similar to the Model P-1000™, the Model P-3000™ is designed for 3/8" wide punch-type clamp applications only. It will not fit 5/8" wide clamps. Double plated construction.
P-1000™ & P-3000™ Replacement Parts
P-38 P500038 Clamp-Master Tool Set for 3/8" Punch Clamps The original, handy, low cost tool set for applying punch-type clamps. Weighs less than one pound. Excellent for confined working areas and for on-job repair and replacement work. Fits 3/8" & 5/8" wide clamps. Double plated construction.
P-38 Replacement Parts
PB-001 P250012 Banding Tool Forged double plated tensioning tool with built in cutter for banding and buckle application. Also can be used with PJ-001 for J-Lok clamp installation. 1" Banding
PB-001 Replacement Parts
PB-001H P250011 HEAVY DUTY Banding Tool Forged double plated tensioning tool with built in cutter for banding and buckle application. Only for use with heavy duty banding and buckles.
D-550 P255500 Clamp Cutter Powerful 14" cutter removes any punch-type clamp with minimum effort. Rugged drop forged heat treated high-carbon steel construction. Double plated.
D-225-A P252250 Mallet Specially designed for the punch-type clamps. Malleable iron head has softer striking surface for long tool life. Made in the U.S.A.
Adapters for Clamping & Banding Tools
D-229 P252290 3/8" Adapter for P-1000 Loking Tool Fits under the pusher nose of P-1000™ loking tool to apply 3/8" punch-type clamps.
PJ-001 P250010 Clamp Adapter for PB-001 Tool Converts PB-001 banding tool to apply J-Lok clamps.
D-300-A P253000 Bench Adapter for P-1000 and P-3000 Loking Tools Converts P-1000™ and P-3000™ loking tools to bench tools to speed clamp application in tool room and hose assembly shop. Made in the U.S.A.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
