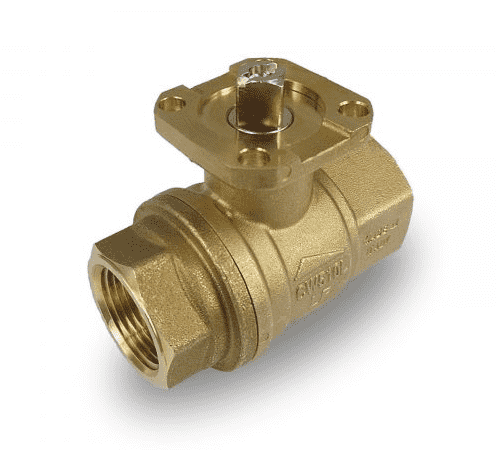

T264E41 by RuB Inc. | PURI-T Series Drinking Water Ball Valve | 3/4" Female NPT x 3/4" Female NPT | with ISO 5211 Actuator Flange | Brass | Pack of 24

Save $93.72

$843.48

$843.48 - $843.48

$843.48

$749.76

$749.76 - $749.76

$749.76

RuB Inc. - Puri-T Series Drinking Water Ball Valve - T264 Series - Female NPT x Female NPT - with ISO 5211 Actuator Flange

Package Quantity: 24 Units

Quantity

Specifications for Variant SKU: T264E41 RuB Inc \| 24 \|
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Lead Free Brass
Seal Material(s):	FPM
Special Properties:	Lead Free

Quality:
Certified by CSA International to comply with U.S. s3874, California AB1953, and similar laws of other states for the safe handling of drinking water 24h 100% seal test guaranteed Dual sealing system allows valve to be operated in either direction making installation easier No metal-to-metal moving parts No maintenance ever required Silicone-free lubricant on all seals Chrome plated lead free brass ball for longer life
Body:
Hot forged sand blasted, unplated lead free brass body and cap sealed with Loctite® or equivalent thread sealant Integrated ISO 5211 and DIN 3337 mounting flange for universal connection to actuator Finest brass according to EN 12165 and EN 12164 (formerly DIN 17660 and UNI 5705-65) specifications
Stem:
Blowout-proof nickel plated lead free brass stem Two FPM O-rings at the stem for maximum safety
Sealing:
Reinforced PTFE self-lubricating seats with flexible-lip and wear compensation design
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
100% full port for maximum flow
Handle:
Integrated sturdy ISO 5211 flange allows direct mounting of electric and pneumatic actuators, with no bracket or coupling required. WARNING: do not exceed reasonable temperature and/or electrical load
Working Pressure & Temperature:
Maximum working pressure 600 PSI (CWP) -40°F/+350°F For 1" size up to 1-1/2" size: -Shell rating: 600 PSI -Seat rating: Delta P max permissible 230 PSI Non-shock cold working pressure NSF 61 limits (CSA approval): tested for use in continuous exposure to water of ambient temperature WARNING: freezing of the fluid in the installation may severely damage the valve
Upon request:
Custom design
Approved by or in Compliance with:
GOST-R (Russia) Hygiene and epidemic center in Moscow city (Russia) Certified by CSA International for Drinking Water to NSF/ANSI 61 - NSF/ANSI 372 (USA) RoHS Compliant (EU) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	DN	I	L	G	H	CH	Ø A	B	C	E	F	Flange Connection DIN ISO 5211 DIN 3337
T264D41	1/2"	1/2"	0.590"	0.610"	2.598"	1.201"	1.220"	1.063"	1.417"	0.354"	0.220"	0.984"	0.295"	F03
T264E41	3/4"	3/4"	0.787"	0.708"	2.933"	1.456"	1.515"	1.259"	1.417"	0.354"	0.220"	0.984"	0.334"	F03
T264F41	1"	1"	0.984"	0.826"	3.562"	1.791"	1.673"	1.614"	1.417"	0.354"	0.220"	0.984"	0.334"	F03
T264G41	1-1/4"	1-1/4"	1.259"	0.905"	4.094"	2.047"	1.941"	1.968"	1.417"	0.354"	0.220"	0.984"	0.334"	F03
T264H41	1-1/2"	1-1/2"	1.575"	0.964"	4.606"	2.322"	2.441"	2.165"	1.968"	0.551"	0.259"	1.378"	0.570"	F05

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
