T352AA500X12.6 Alfagomma by Kuriyama | Radiator Hose | Black | 5" ID | 5.55" OD | 75 PSI | 12.6ft Length

T352AA500X12.6 Alfagomma by Kuriyama | Radiator Hose | Black | 5" ID | 5.55" OD | 75 PSI | 12.6ft Length

Save $98.02 Save $98.02
$343.07
$343.07 - $343.07
$343.07
$245.05
$245.05 - $245.05
$245.05

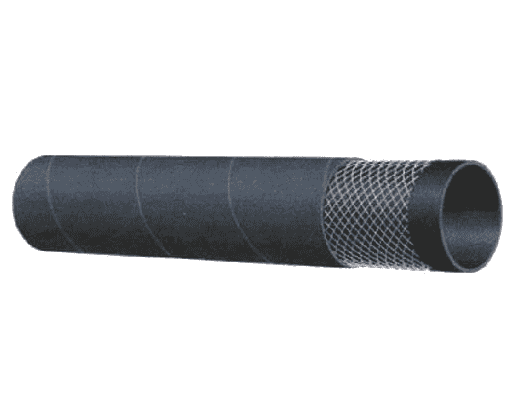

Kuriyama Alfagomma® T352AA Series 75 PSI Radiator Hose - Black/>
Specifications for Variant SKU: T352AA500X12.6 Kuriyama | 12.6 |
Brand: Alfagomma
Series: T352AA Series
Hose Color(s): Black
Internal Diameter: 5in
Outer Diameter: 5.55in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: Radiator hose. SAE Rating: N/A
Other Ratings: N/A Tube: Black EPDM.
Reinforcement: High tensile textile cords. Cover: Black EPDM - heat, abrasion and ozone resistant.
Temperature Range: -40 deg. F (-40 deg. C) to 248 deg. F (+120 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Branding: ALFAGOMMA - ITALY - T-352 RADIATOR - DIN 73411 - dia mm / in. SAE 20R1-D2 (in yellow letters)
Part Number Nominal ID Nominal OD Max Rec. Working Pressure Standard Length Weight
(in.) (mm) (in.) (mm) PSI (ft.) (lbs./ft.)
T352AA050X12-6 1/2" 13mm 0.83" 21mm 75 PSI 12.6ft 0.19 lbs
T352AA050X200 1/2" 13mm 0.83" 21mm 75 PSI 200ft 0.19 lbs
T352AA062X12-6 5/8" 16mm 0.94" 24mm 75 PSI 12.6ft 0.22 lbs
T352AA071X12-6 11/16" 18mm 1.02" 26 mm 75 PSI 12.6ft 0.24 lbs
T352AA078X12-6 13/16" 20mm 1.10" 28mm 75 PSI 12.6ft 0.26 lbs
T352AA078X200 13/16" 20mm 1.10" 28mm 75 PSI 200ft 0.26 lbs
T352AA087X12-6 7/8" 22mm 1.18" 30mm 75 PSI 12.6ft 0.28 lbs
T352AA087X200 7/8" 22mm 1.18" 30mm 75 PSI 200ft 0.28 lbs
T352AA100X12-6 1" 25mm 1.30" 33mm 75 PSI 12.6ft 0.32 lbs
T352AA100X200 1" 25mm 1.30" 33mm 75 PSI 200ft 0.32 lbs
T352AA112X12-6 1-1/8" 28mm 1.42" 36mm 75 PSI 12.6ft 0.34 lbs
T352AA112X200 1-1/8" 28mm 1.42" 36mm 75 PSI 200ft 0.34 lbs
T352AA118X12-6 1-3/16" 30mm 1.50" 38mm 75 PSI 12.6ft 0.37 lbs
T352AA118X200 1-3/16" 30mm 1.50" 38mm 75 PSI 200ft 0.37 lbs
T352AA125X12-6 1-1/4" 32mm 1.57" 40mm 75 PSI 12.6ft 0.39 lbs
T352AA125X200 1-1/4" 32mm 1.57" 40mm 75 PSI 200ft 0.39 lbs
T352AA137X12-6 1-3/8" 35mm 1.69" 43mm 75 PSI 12.6ft 0.42 lbs
T352AA137X200 1-3/8" 35mm 1.69" 43mm 75 PSI 200ft 0.42 lbs
T352AA150X12-6 1-1/2" 38mm 1.89" 48mm 75 PSI 12.6ft 0.57 lbs
T352AA150X200 1-1/2" 38mm 1.89" 48mm 75 PSI 200ft 0.57 lbs
T352AA162X12-6 1-5/8" 42mm 2.05" 52mm 75 PSI 12.6ft 0.63 lbs
T352AA162X200 1-5/8" 42mm 2.05" 52mm 75 PSI 200ft 0.63 lbs
T352AA175X12-6 1-3/4" 45mm 2.17" 55mm 75 PSI 12.6ft 0.66 lbs
T352AA175X200 1-3/4" 45mm 2.17" 55mm 75 PSI 200ft 0.66 lbs
T352AA189X12-6 1-7/8" 48mm 2.28" 58mm 75 PSI 12.6ft 0.70 lbs
T352AA189X200 1-7/8" 48mm 2.28" 58mm 75 PSI 200ft 0.70 lbs
T352AA200X12-6 2" 51mm 2.40" 61mm 75 PSI 12.6ft 0.75 lbs
T352AA200X200 2" 51mm 2.40" 61mm 75 PSI 200ft 0.75 lbs
T352AA225X12-6 2-1/4" 57mm 2.64" 67mm 75 PSI 12.6ft 0.82 lbs
T352AA238X12-6 2-3/8" 60mm 2.76" 70mm 75 PSI 12.6ft 0.86 lbs
T352AA238X200 2-3/8" 60mm 2.76" 70mm 75 PSI 200ft 0.86 lbs
T352AA250X12-6 2-1/2" 63mm 2.87" 73mm 75 PSI 12.6ft 0.90 lbs
T352AA250X12-6 2-1/2" 63mm 2.87" 73mm 75 PSI 12.6ft 0.90 lbs
T352AA275X12-6 2-3/4" 70mm 3.15" 80mm 75 PSI 12.6ft 0.97 lbs
T352AA300X12-6 3" 76mm 3.39" 86mm 75 PSI 12.6ft 1.04 lbs
T352AA315X12-6 3-1/8" 80mm 3.54" 90mm 75 PSI 12.6ft 1.10 lbs
T352AA354X12-6 3-9/16" 90mm 4.02" 102mm 75 PSI 12.6ft 1.36 lbs
T352AA400X12-6 4" 102mm 4.49" 114mm 75 PSI 12.6ft 1.52 lbs
T352AA450X12-6 4-1/2" 116mm 5.00" 127mm 75 PSI 12.6ft 1.69 lbs
T352AA500X12-6 5" 127mm 5.55" 141mm 75 PSI 12.6ft 2.16 lbs
