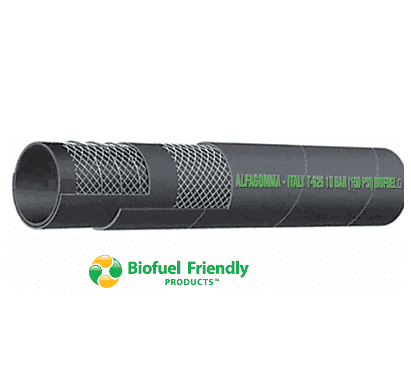

T629AA300X100 Alfagomma by Kuriyama | T629AA Series | Biofuel Petroleum Suction & Discharge Hose | 3" ID | 3.46" OD | 150 PSI | Black | 100ft Length

T629AA300X100 Alfagomma by Kuriyama | T629AA Series | Biofuel Petroleum Suction & Discharge Hose | 3" ID | 3.46" OD | 150 PSI | Black | 100ft Length

Save $748.94 Save $748.94
$2,735.95
$2,735.95 - $2,735.95
$2,735.95
$1,987.01
$1,987.01 - $1,987.01
$1,987.01

Kuriyama of America Inc.
Alfagomma | T629AA Series | Biofuel Petroleum Suction & Discharge Hose

For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels - up to E98 and B100* with up to 60% aromatic content at ambient temperature.

Package Quantity: 100 Foot

Specifications for Variant SKU: T629AA300X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T629AA Series
Hose Color(s): Black
Internal Diameter: 3in
Outer Diameter: 3.46in
Tubing Construction: Synthetic Rubber
Cover Construction: Neoprene
Special Properties: Conductive Tube

SPECIFICATIONS

Application: For suction and discharge applications in truck and tank car transfer of gasoline, oil and Biofuels - up to E98 and B100* with up to 60% aromatic content at ambient temperature.
*Applies to Biodiesels which meet the ASTM D6751 criteria.
Other Ratings: - Tube: Black conductive synthetic rubber.
Reinforcement: High tensile textile cords with steel helix wire. Cover: Black specially-blended neoprene - added resistance against abrasion, ozone and hydrocarbons.
Service Temperature Range: -22°F (-30°C) to 176°F (+80°C) Coupling Suggestions: Quick-Acting or combination nipples attached with bands.
Branding: ALFAGOMMA - ITALY T629 - 10 BAR (150 PSI) BIOFUEL Ω (in green letters)
Note: T629 is not recommended for use on a reel.
Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Vacuum Min.
Bend Radius
at 68°F 		Weight
(in) (mm) (in) (mm) PSI in Hg (in) lbs/ft
T629AA075X100 3/4" 19mm 1.14" 29mm 150 PSI 30 in Hg 3" 0.41 lbs/ft
T629AA100X100 1" 25mm 1.38" 35mm 150 PSI 30 in Hg 4" 0.51 lbs/ft
T629AA150X100 1-1/2" 38mm 1.89" 48mm 150 PSI 30 in Hg 6" 0.71 lbs/ft
T629AA200X100 2" 51mm 2.40" 61mm 150 PSI 30 in Hg 8" 0.91 lbs/ft
T629AA250X100 2-1/2" 63mm 2.95" 75mm 150 PSI 27 in Hg 10" 1.42 lbs/ft
T629AA300X100 3" 76mm 3.46" 88mm 150 PSI 27 in Hg 12" 1.71 lbs/ft
T629AA400X100 4" 102mm 4.57" 116mm 150 PSI 27 in Hg 16" 2.38 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
