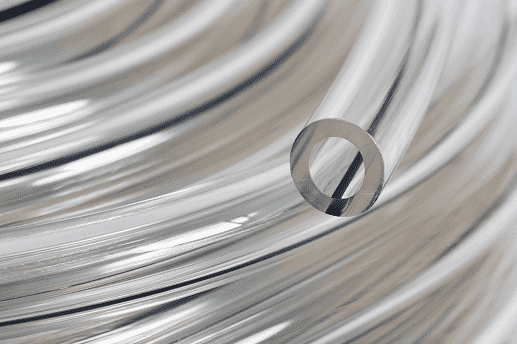

Transflow S3™ ACR02019 1/4" ID x 1/2" OD x 1/8" Wall A24 100' Package Length - Single Tube A24 Clear Vacuum (Air) Tubing

ACR02019 Transflow Tygon S3™ by Saint Gobain | 1/4" ID x 1/2" OD x 1/8" Wall | Single Tube A24 Clear Vacuum Air Tubing | 100' Package Length

Minimum Order Quantity: 28 Boxes

Save $7.96 Save $7.96
$76.59
$76.59 - $76.59
$76.59
$68.63
$68.63 - $68.63
$68.63

Saint Gobain - Transflow Tygon S3® Single & Twin Tube A24 Clear Vacuum (Air) Tubing

No by the foot sales. This is a Packaged Length product.

Package Quantity: 100 FT

Specifications for Variant SKU: ACR02019 Saint Gobain
Brand: Tygon S3
Series: Transflow
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.25in
Outer Diameter: 0.50in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Application: Supply Air Transport SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -32 deg. F (-36 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA, 3-A
Literature: Transflow S3® Single & Twin Tube A24 Clear Vacuum (Air) Tubing (PDF)
Other Features:
  • Crystal Clarity Permits Detection of Equipment Deficiencies Such as Backflow of Milk into the Air Lines.
  • Smooth Inner Surface is Less Susceptible To Particle Entrapment
  • Lightweight and Flexible for Quick Installation
  • Durability for Long and Reliable Service
  • WARNING: Transflow Tygon S3® Single & Twin Tube A24 Clear Vacuum (Air) Tubing is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Min. Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Vacuum Rating at 73 deg. F (in. Hg) Length
ACR02019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 100ft
ACR02021 9/32" 17/32" 1/8" 3/4" 55 PSI 29.9 in. Hg 100ft
ACR02029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 100ft
ACR02034 7/16" 11/16" 1/8" 1-3/8" 39 PSI 29.9 in. Hg 100ft
ACR02038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 26.0 in. Hg 100ft
Twin Tube
ACR02916 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 100ft
ACR02917 9/32" 17/32" 1/8" 3/4" 55 PSI 29.9 in. Hg 100ft
ACR02918 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 100ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
