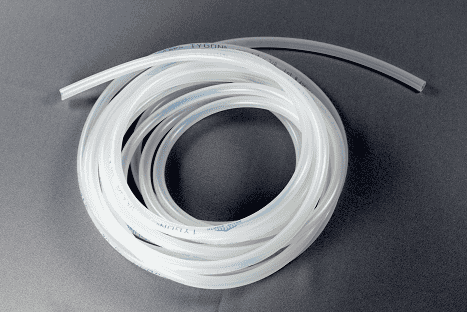

Tygon® ABW06NSF 1/8" ID x 3/16" OD x 1/32" Wall (SPT-3350) 50' Package Length - Silicone Tubing for Food & Beverage Transfer (Old Part #: ABW00006)

ABW06NSF Tygon® by Saint Gobain | 1/8" ID x 3/16" OD x 1/32" Wall | SPT-3350 | Silicone Tubing for Food & Beverage Transfer | Old Part #: ABW00006 | 50' Package Length

Minimum Order Quantity: 10 Packages

Save $5.72 Save $5.72
$78.37
$78.37 - $78.37
$78.37
$72.65
$72.65 - $72.65
$72.65

Saint Gobain - Tygon® Silicone Tubing for Food & Beverage Transfer - Formulation SPT-3350

The inner surface of Tygon® SPT-3350 silicone tubing for food & beverage dispensing has been designed to reduce the risk of particle entrapment and microscopic build-up during fluid transfer.

A smoother fluid path helps to facilitate complete sanitation of a fluid transfer system. Even in repeat use applications, Tygon® SPT-3350 tubing may prevent residue build-up, aiding in complete cleaning and sterilization.

No by the foot sales. This is a Packaged Length product. 2-14 Week Lead Times.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: ABW06NSF Saint Gobain
Brand: Tygon
Series: SPT-3350
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.125in
Outer Diameter: 0.1875in
Tubing Construction: Silicone
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards , FDA 21 CFR Part 175.300, NSF 51
Application: Food and Beverage Dispensing SAE Rating: N/A
Other Ratings: N/A Tube: Silicone
Reinforcement: N/A Cover: N/A
Temperature Range: -112 deg. F (-80 deg. C) - 400 deg. F (204 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3-A Sanitary Standard No. 18-01 FDA 21 CFR 175.300 NSF 51**
Literature: Tygon® Silicone Tubing for Food & Beverage Transfer - Formulation SPT-3350 (PDF)
Other Features:
  • Ultra-smooth inner bore reduces potential for particle entrapment
  • Minimal extractables help maintain fluid integrity
  • Excellent fluid flow characteristics
  • Complete inventory of standard sizes available, including metric sizes
  • Tygon® Silicone Tubing for Food & Beverage Transfer - Formulation SPT-3350 is not intended as an implant material.
Part Number Inside Diameter Outside Diameter Wall Thickness Length Min. Bend Radius Max. Working Pressure Vacuum Rating
(in.) (in.) (in.) (in.) 73 deg. F (PSI)* 320 deg. F (PSI)* inHg at 73 deg. F* inHg at 320 deg. F*
ABW01NSF 1/32" 3/32" 1/32" 50ft 1/2" 22 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg
ABW02NSF 1/16" 1/8" 1/32" 50ft 1/4" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW03NSF 1/16" 3/16" 1/16" 50ft 1/4" 22 PSI 21 PSI 29.9 in. Hg 29.9 in. Hg
ABW04NSF 3/32" 5/32" 1/32" 50ft 1/4" 11 PSI 10 PSI 29.9 in. Hg 29.9 in. Hg
ABW05NSF 3/32" 7/32" 1/16" 50ft 1/4" 18 PSI 16 PSI 29.9 in. Hg 29.9 in. Hg
ABW06NSF 1/8" 3/16" 1/32" 50ft 3/8" 9 PSI 8 PSI 20.0 in. Hg 15.0 in. Hg
ABW07NSF 1/8" 1/4" 1/16" 50ft 1/2" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW09NSF 5/32" 7/32" 1/32" 50ft 3/4" 7 PSI 6 PSI 10.0 in. Hg 10.0 in. Hg
ABW11NSF 3/16" 1/4" 1/32" 50ft 1" 7 PSI 6 PSI 5.0 in. Hg 5.0 in. Hg
ABW12NSF 3/16" 5/16" 1/16" 50ft 1/2" 11 PSI 10 PSI 25.0 in. Hg 25.0 in. Hg
ABW13NSF 3/16" 3/8" 3/32" 50ft 3/8" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW14NSF 3/16" 7/6" 1/8" 50ft 3/8" 18 PSI 16 PSI 29.9 in. Hg 29.9 in. Hg
ABW16NSF 1/4" 5/16" 1/32" 50ft 1-1/2" 5 PSI 4 PSI 1.0 in. Hg 1.0 in. Hg
ABW17NSF 1/4" 3/8" 1/16" 50ft 3/4" 9 PSI 8 PSI 15.0 in. Hg 15.0 in. Hg
ABW18NSF 1/4" 7/16" 3/32" 50ft 5/8" 12 PSI 11 PSI 29.9 in. Hg 29.9 in. Hg
ABW19NSF 1/4" 1/2" 1/8" 50ft 5/8" 14 PSI 13 PSI 29.9 in. Hg 29.9 in. Hg
ABW22NSF 5/16" 7/16" 1/16" 50ft 1-1/4" 7 PSI 6 PSI 5.0 in. Hg 5.0 in. Hg
ABW23NSF 5/16" 1/2" 3/32" 50ft 5/8" 10 PSI 9 PSI 20.0 in. Hg 20.0 in. Hg
ABW27NSF 3/8" 1/2" 1/16" 50ft 1-1/2" 9 PSI 8 PSI 5.0 in. Hg 5.0 in. Hg
ABW28NSF 3/8" 9/16" 3/32" 50ft 1" 11 PSI 10 PSI 20.0 in. Hg 15.0 in. Hg
ABW29NSF 3/8" 5/8" 1/8" 50ft 1" 12 PSI 11 PSI 29.9 in. Hg 29.9 in. Hg
ABW32NSF 7/16" 9/16" 1/16" 50ft 1-1/2" 4 PSI 3 PSI 2.0 in. Hg 2.0 in. Hg
ABW33NSF 7/16" 5/8" 3/32" 50ft 1-3/4" 8 PSI 7 PSI 10.0 in. Hg 10.0 in. Hg
ABW36NSF 1/2" 5/8" 1/16" 50ft 3" 5 PSI 4 PSI 1.0 in. Hg 1.0 in. Hg
ABW37NSF 1/2" 11/16" 3/32" 50ft 1-3/4" 7 PSI 6 PSI 5.0 in. Hg 5.0 in. Hg
ABW38NSF 1/2" 3/4" 1/8" 50ft 1-1/2" 9 PSI 8 PSI 15.0 in. Hg 15.0 in. Hg
ABW45NSF 5/8" 13./16" 3/32" 50ft 3" 6 PSI 5 PSI 5.0 in. Hg 0.0 in. Hg
ABW46NSF 5/8" 7/8" 1/8" 50ft 2-1/2" 7 PSI 6 PSI 10.0 in. Hg 10.0 in. Hg
ABW53NSF 3/4" 1" 1/8" 50ft 2-1/2" 7 PSI 6 PSI 1.0 in. Hg 1.0 in. Hg
ABW62NSF 1" 1-1/4" 1/8" 50ft 5" 5 PSI 4 PSI 0.0 in. Hg 0.0 in. Hg
ABW69NSF 1-1/4" 1-1/2" 1/8" 50ft 6" 5 PSI 4 PSI 0.0 in. Hg 0.0 in. Hg
ABW74NSF 1-1/2" 2" 1/4" 50ft 7" 6 PSI 5 PSI 1.0 in. Hg 1.0 in. Hg
* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 **Only US Manufacturing sites are NSF compliant. For EU manufacturing sites, NSF compliance is in progress. Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
