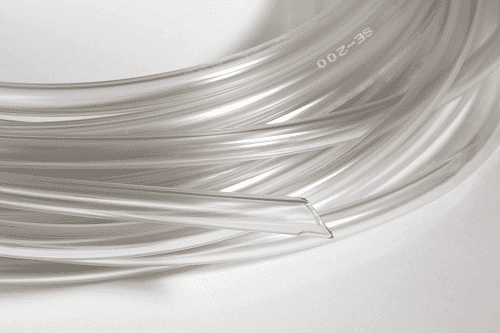

Versilon™ AJD00038 1/2" I.D. x 3/4" O.D. x 1/8" Wall (SE-200) 50' Package Length - Tubing

AJD00038 Versilon™ by Saint Gobain | 1/2" I.D. x 3/4" O.D. x 1/8" Wall | SE-200 | Tubing | 50' Package Length

Save $42.81 Save $42.81
$385.25
$385.25 - $385.25
$385.25
$342.44
$342.44 - $342.44
$342.44

Saint Gobain - Versilon™ Tubing - Formulation SE-200

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AJD00038 Saint Gobain
Brand: Versilon
Series: SE-200
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.50in
Outer Diameter: 0.75in
Tubing Construction: FEP
Applicable Specs & Approvals: FDA 21 CFR Part 177.1550

SPECIFICATIONS

Application: Chemical Processing, Pharmaceutical Processing and Filling, Paint and Solvent Production and Packaging, Adhesive Transfer Lines, Semiconductor Processing, Photographic Processing Equipment, Beverage Dispensing, Ink and Toner Feed Lines, Fertilizer and Pesticide Distribution SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -32 deg. F (-36 deg. C) - 165 deg. F (74 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications FDA 21 CFR 177.1550
Literature: Versilon™ Tubing - Formulation SE-200 (PDF)
Other Features:
    • Crystal clarity
    • Improved flexibility when compared to rigid fluoropolymer tubings
    • Chemically resistant and inert
    • Non-contaminating fluid path
    • Contains no BPA or phthalates
    • WARNING: Versilon™ Tubing - Formulation SE-200 is not intended as an implant material.

Part Number Inside Diameter (in.) Outside Diameter (in.) Wall Thickness (in.) Bend Radius (in.) Max. Working Pressure at 73 deg. F (PSI)* Max. Working Pressure at 160 deg. F (PSI)* Length
AJD00002 1/16" 1/8" 1/32" 1/2" 100 PSI 45 PSI 50ft
AJD00007 1/8" 1/4" 1/16" 1" 85 PSI 40 PSI 50ft
AJD00012 3/16" 5/16" 1/16" 1-1/2" 75 PSI 38 PSI 50ft
AJD00017 1/4" 3/8" 1/16" 2" 55 PSI 35 PSI 50ft
AJD00028 3/8" 9/16" 3/32" 3-1/2" 50 PSI 25 PSI 50ft
AJD00038 1/2" 3/4" 1/8" 4" 45 PSI 18 PSI 50ft
AJD00053 3/4" 1" 1/8" 4-1/2" 30 PSI 12 PSI 50ft

* Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599 Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Saint-Gobain Performance Plastics information documents for the most accurate and up to date data and specifics. Important! It is the user's responsibility to ensure the suitability and safety of Saint-Gobain Performance Plastics tubing for all intended uses. Laboratory and clinical tests must be conducted in accordance with applicable regulatory requirements in order to determine the safety and effectiveness for use of tubing in any particular application. ©2003 Saint-Gobain Performance Plastics Corporation This product is priced and sold by Packaged Length. At this time, this particular hose is not available "by the foot" through our site.
