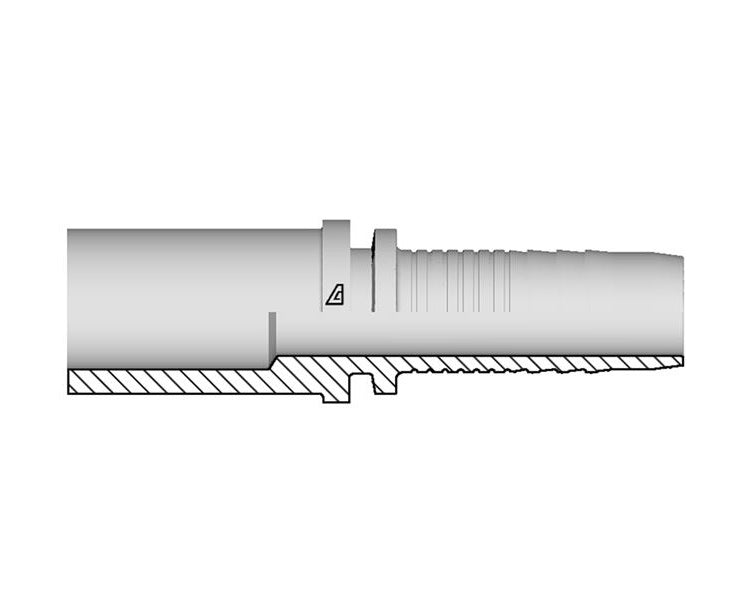

A-0306-MSPS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -03 Hose ID x M06 Metric Standpipe | Steel | Pack of 5

Save $1.52

$5.33

$5.33 - $5.33

$5.33

$3.81

$3.81 - $3.81

$3.81

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Metric Standpipe

Specifications for Variant SKU: A-0306-MSPS Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/16in Hose Barb, 6mm Tube Stub
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			GI Tube OD	C Cut-Off Factor	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
A-0306-MSPS	03	3/16"	4.8mm	6mm	27.8mm	0.02 lbs
A-0308-MSPS	03	3/16"	4.8mm	8mm	29.8mm	0.03 lbs
A-0406-MSPS	04	1/4"	6.4mm	6mm	28.3mm	0.02 lbs
A-0408-MSPS	04	1/4"	6.4mm	8mm	30.2mm	0.03 lbs
A-0410-MSPS	04	1/4"	6.4mm	10mm	32.2mm	0.04 lbs
A-0412-MSPS	04	1/4"	6.4mm	12mm	31.2mm	0.06 lbs
A-0510-MSPS	05	5/16"	7.9mm	10mm	30.2mm	0.04 lbs
A-0512-MSPS	05	5/16"	7.9mm	12mm	32.7mm	0.06 lbs
A-0610-MSPS	06	3/8"	9.5mm	10mm	30.3mm	0.04 lbs
A-0612-MSPS	06	3/8"	9.5mm	12mm	29.3mm	0.05 lbs
A-0614-MSPS	06	3/8"	9.5mm	14mm	35.8mm	0.09 lbs
A-0615-MSPS	06	3/8"	9.5mm	15mm	34.8mm	0.09 lbs
A-0812-MSPS	08	1/2"	12.7mm	12mm	32.1mm	0.10 lbs
A-0814-MSPS	08	1/2"	12.7mm	14mm	36.1mm	0.10 lbs
A-0815-MSPS	08	1/2"	12.7mm	15mm	32.1mm	0.10 lbs
A-0816-MSPS	08	1/2"	12.7mm	16mm	37.1mm	0.12 lbs
A-0818-MSPS	08	1/2"	12.7mm	18mm	36.0mm	0.12 lbs
A-1018-MSPS	10	5/8"	15.9mm	18mm	34.2mm	0.14 lbs
A-1020-MSPS	10	5/8"	15.9mm	20mm	44.2mm	0.20 lbs
A-1022-MSPS	10	5/8"	15.9mm	22mm	37.2mm	0.18 lbs
A-1220-MSPS	12	3/4"	19.0mm	20mm	45.5mm	0.20 lbs
A-1222-MSPS	12	3/4"	19.0mm	22mm	36.5mm	0.21 lbs
A-1225-MSPS	12	3/4"	19.0mm	25mm	48.5mm	0.77 lbs
A-1625-MSPS	16	1"	25.4mm	25mm	51.4mm	0.41 lbs
A-1628-MSPS	16	1"	25.4mm	28mm	40.4mm	0.43 lbs
A-1630-MSPS	16	1"	25.4mm	30mm	54.4mm	0.23 lbs
A-1638-MSPS	16	1"	25.4mm	38mm	60.4mm	0.11 lbs
A-2030-MSPS	20	1-1/4"	31.8mm	30mm	56.0mm	0.66 lbs
A-2035-MSPS	20	1-1/4"	31.8mm	35mm	48.0mm	0.60 lbs
A-2038-MSPS	20	1-1/4"	31.8mm	38mm	62.0mm	0.83 lbs
A-2438-MSPS	24	1-1/2"	38.1mm	38mm	62.0mm	1.03 lbs
A-2442-MSPS	24	1-1/2"	38.1mm	42mm	52.0mm	0.86 lbs
