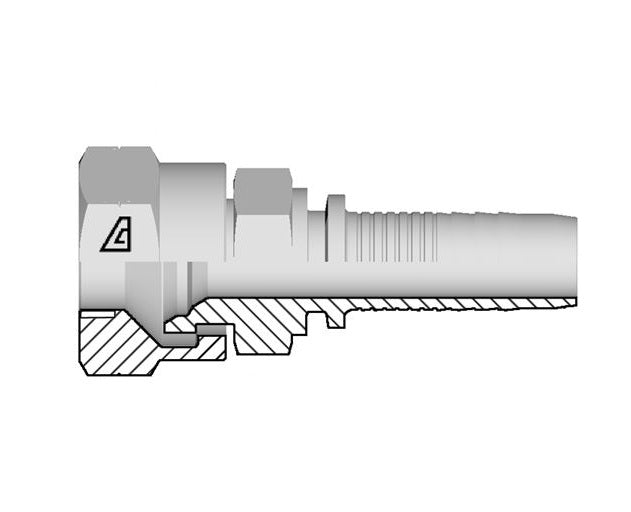

A-0404-FJIS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIS Swivel 30° Seat B 8363 Type F | Steel | Pack of 5

Save $3.26

$11.41

$11.41 - $11.41

$11.41

$8.15

$8.15 - $8.15

$8.15

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female JIS Swivel 30° Seat B 8363 Type F

Specifications for Variant SKU: A-0404-FJIS Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female JIS
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread Size	C Cut-Off Factor	Hex Dia. CH1	Hex Dia. CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-0404-FJIS	04	1/4"	6.4mm	04	1/4-19	20.8mm	17mm	19mm	0.09 lbs
A-0606-FJIS	06	3/8"	9.5mm	06	3/8-19mm	21.8mm	19mm	22mm	0.13 lbs
A-0808-FJIS	08	1/2"	12.7mm	08	1/2-14	23.6mm	22mm	27mm	0.20 lbs
A-1212-FJIS	12	3/4"	19.0mm	12	3/4-14	27.1mm	30mm	36mm	0.41 lbs
A-1616-FJIS	16	1"	25.4mm	16	1-11	32.9mm	36mm	41mm	0.62 lbs
A-2020-FJIS	20	1-1/4"	31.8mm	20	1-1/4-11	39.5mm	46mm	50mm	1.19 lbs
A-2424-FJIS	24	1-1/2"	38.1mm	24	1-1/2-11	41.5mm	50mm	55mm	1.48 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
