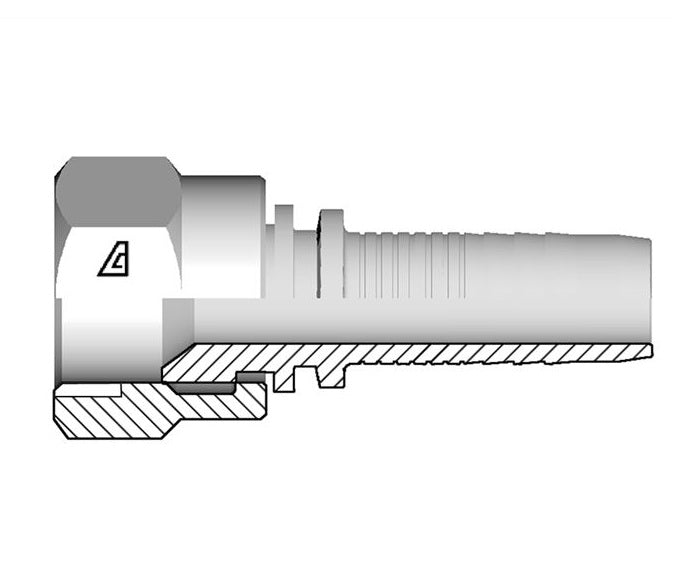

A-0404-FJSH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -04 Female JIC 37° | Steel | Pack of 5

Save $0.84

$2.94

$2.94 - $2.94

$2.94

$2.10

$2.10 - $2.10

$2.10

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female JIC 37° Seat

Specifications for Variant SKU: A-0404-FJSH Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female JIC
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	lbs/each
A-0304-FJSH	03	3/16"	4.8mm	04	7/16-20	14.3mm	16mm	0.04 lbs
A-0404-FJSH	04	1/4"	6.4mm	04	7/16-20	14.6mm	16mm	0.04 lbs
A-0405-FJSH	04	1/4"	6.4mm	05	1/2-20	15.3mm	17mm	0.06 lbs
A-0406-FJSH	04	1/4"	6.4mm	06	9/16-18	15.3mm	19mm	0.07 lbs
A-0505-FJSH	05	5/16"	7.9mm	05	1/2-20	15.3mm	17mm	0.07 lbs
A-0506-FJSH	05	5/16"	7.9mm	06	9/16-18	15.3mm	19mm	0.08 lbs
A-0606-FJSH	06	3/8"	9.5mm	06	9/16-18	15.3mm	19mm	0.08 lbs
A-0608-FJSH	06	3/8"	9.5mm	08	3/4-16	17.8mm	25mm	0.14 lbs
A-0808-FJSH	08	1/2"	12.7mm	08	3/4-16	18.6mm	25mm	0.16 lbs
A-0810-FJSH	08	1/2"	12.7mm	10	7/8-14	19.6mm	27mm	0.19 lbs
A-0812-FJSH	08	1/2"	12.7mm	12	1-1/16-12	22.1mm	32mm	0.25 lbs
A-1010-FJSH	10	5/8"	15.9mm	10	7/8-14	19.6mm	27mm	0.21 lbs
A-1012-FJSH	10	5/8"	15.9mm	12	1-1/16-12	20.1mm	32mm	0.26 lbs
A-1210-FJSH	12	3/4"	19.0mm	10	7/8-14	20.0mm	27mm	0.28 lbs
A-1212-FJSH	12	3/4"	19.0mm	12	1-1/16-12	20.0mm	32mm	0.28 lbs
A-1214-FJSH	12	3/4"	19.0mm	14	1-3/16-12	20.0mm	36mm	0.33 lbs
A-1216-FJSH	12	3/4"	19.0mm	16	1-5/16-12	22.1mm	38mm	0.38 lbs
A-1616-FJSH	16	1"	25.4mm	16	1-5/16-12	23.9mm	38mm	0.46 lbs
A-1620-FJSH	16	1"	25.4mm	20	1-5/8-12	26.5mm	50mm	0.88 lbs
A-1616-FJSH	20	1-1/4"	31.8mm	20	1-5/8-12	28.1mm	50mm	0.96 lbs
A-2024-FJSH	20	1-1/4"	31.8mm	24	1-7/8-12	30.4mm	55mm	1.18 lbs
A-2424-FJSH	24	1-1/2"	38.1mm	24	1-7/8-12	31.4mm	55mm	1.24 lbs
A-3232-FJSH	32	2"	50.8mm	32	2-1/2-12	32.0mm	70mm	2.19 lbs
