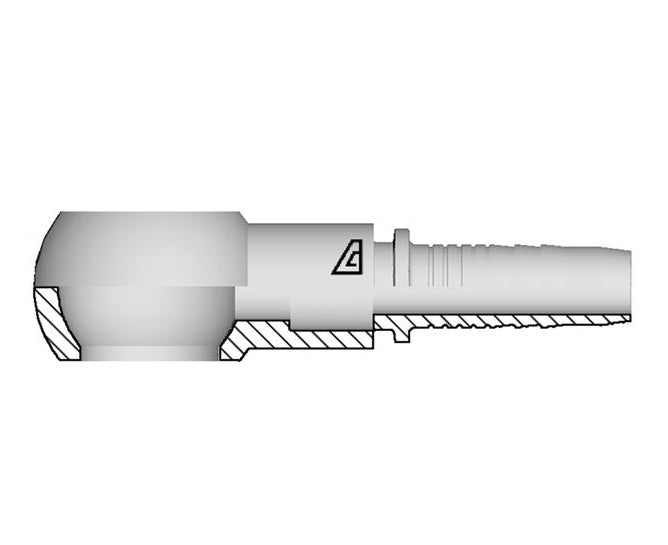

A-0406-BBAN Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -06 BSPP Banjo - RNR | Steel

A-0406-BBAN Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -04 Hose ID x -06 BSP Banjo - RNR | Steel

Save $2.29 Save $2.29
$8.01
$8.01 - $8.01
$8.01
$5.72
$5.72 - $5.72
$5.72

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x BSP Banjo - RNR
Specifications for Variant SKU: A-0406-BBAN Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Hose Barb, 3/8in Female BSPP Banjo
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread F C
Cut-Off Factor		 K Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0402-BBAN 04 1/4" 6.4mm 02 1/8-28 10.1mm 20.0mm 17mm 0.06 lbs
A-0404-BBAN 04 1/4" 6.4mm 04 1/4-19 13.3mm 26.5mm 22mm 0.07 lbs
A-0406-BBAN 04 1/4" 6.4mm 06 3/8-19 16.7mm 30.5mm 28mm 0.08 lbs
A-0506-BBAN 05 5/16" 7.9mm 06 3/8-19 16.7mm 30.5mm 28mm 0.10 lbs
A-0606-BBAN 06 3/8" 9.5mm 06 3/8-19 16.7mm 30.5mm 28mm 0.10 lbs
A-0608-BBAN 06 3/8" 9.5mm 08 1/2-14 21.0mm 34.5mm 38mm 0.19 lbs
A-0808-BBAN 08 1/2" 12.7mm 08 1/2-14 21.0mm 35.0mm 38mm 0.20 lbs
A-1010-BBAN 10 5/8" 15.9mm 10 5/8-14 23.0mm 38.0mm 40mm 0.27 lbs
A-1212-BBAN 12 3/4" 19.0mm 12 3/4-14 26.5mm 41.5mm 46mm 0.44 lbs
A-1616-BBAN 16 1" 25.4mm 16 1-11 33.3mm 50.5mm 58mm 0.82 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
