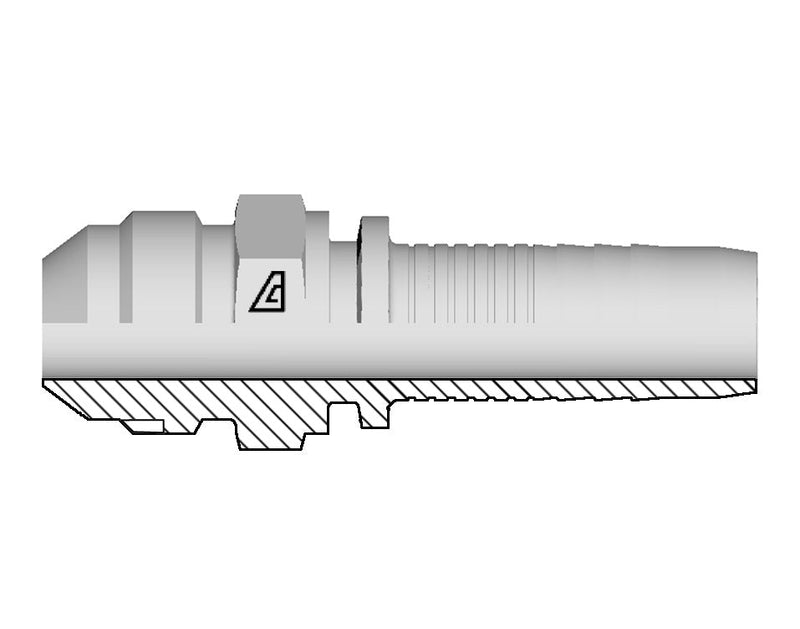

A-0506-MSAE Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -05 Hose ID x -06 Male SAE 45° | Steel

Name: A-0506-MSAE Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -05 Hose ID x -06 Male SAE 45° | Steel
Brand: Kuriyama
SKU: A-0506-MSAE Kuriyama
Price: 13.08 USD
Availability: InStock

Save $5.23

$18.31

$18.31 - $18.31

$18.31

$13.08

$13.08 - $13.08

$13.08

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male SAE 45°

Specifications for Variant SKU: A-0506-MSAE Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	5/16in Hose Barb, 3/8in Male SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	lbs/each
A-0506-MSAE	05	5/16"	7.9mm	06	5/8-18	28mm	16mm	0.08 lbs
A-0606-MSAE	06	3/8"	9.5mm	06	5/8-18	28mm	16mm	0.08 lbs
A-1012-MSAE	10	5/8"	15.9mm	12	1-1/16-12	43.5mm	27mm	0.31 lbs
A-1212-MSAE	12	3/4"	19.0mm	12	1-1/16-12	41mm	27mm	0.32 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
