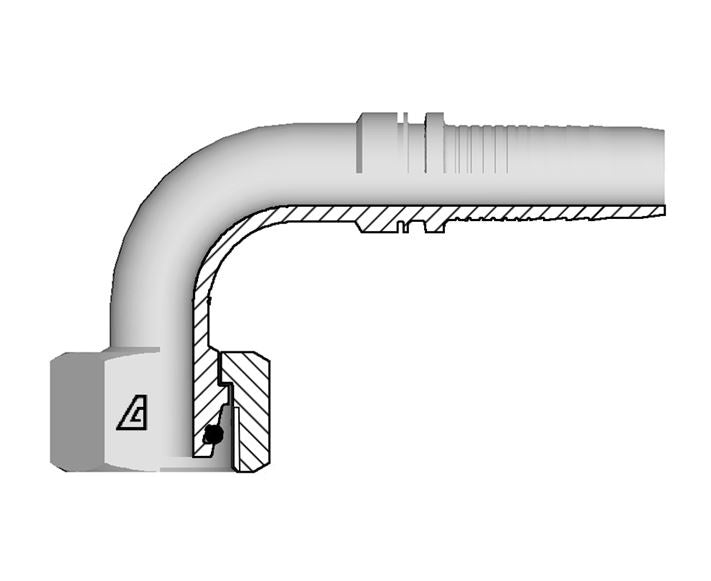

A-0520-FM9H Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | -05 Hose ID x M20 Female Metric O-Ring Swivel 24° Seat | Steel

Save $2.53

$8.86

$8.86 - $8.86

$8.86

$6.33

$6.33 - $6.33

$6.33

Specifications for Variant SKU: A-0520-FM9H Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	90 Degree
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3865
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	D Drop	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	(mm)	lbs/each
A-0414-FM9H	04	1/4"	6.4mm	M14x1.5	6mm	27.3mm	33.0mm	17mm	0.11 lbs
A-0418-FM9H	04	1/4"	6.4mm	M18x1.5	10mm	26.8mm	34.0mm	22mm	0.13 lbs
A-0520-FM9H	05	5/16"	7.9mm	M20x1.5	12mm	33.2mm	39.0mm	24mm	0.19 lbs
A-0620-FM9H	06	3/8"	9.5mm	M20x1.5	12mm	34.3mm	38.5mm	24mm	0.18 lbs
A-0622-FM9H	06	3/8"	9.5mm	M22x1.5	14mm	34.3mm	40.5mm	27mm	0.24 lbs
A-0824-FM9H	08	1/2"	12.7mm	M24x1.5	16mm	39.8mm	41.5mm	30mm	0.31 lbs
A-1030-FM9H	10	5/8"	15.9mm	M30x2	20mm	47.9mm	55.0mm	36mm	0.52 lbs
A-1236-FM9H	12	3/4"	19.0mm	M36x2	25mm	50.6mm	59.5mm	46mm	0.88 lbs
A-1642-FM9H	16	1"	25.4mm	M42x2	30mm	75.6mm	79.0mm	50mm	1.38 lbs
A-2052-FM9H	20	1-1/4"	31.8mm	M52x2	38mm	94.0mm	92.0mm	60mm	2.09 lbs
