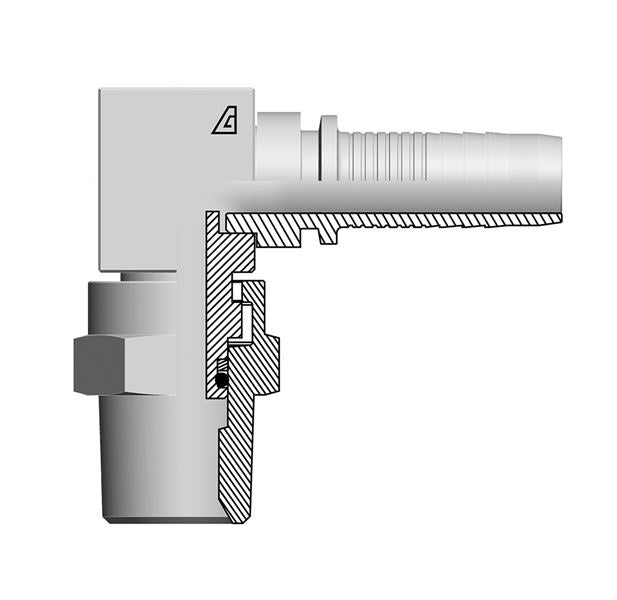

A-0604-MPS9 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | -06 Hose ID x -04 Male NPTF Swivel 60° Seat | Steel

Save $6.91

$24.19

$24.19 - $24.19

$24.19

$17.28

$17.28 - $17.28

$17.28

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Compact 90° Elbow | Hose Barb x Male NPTF Swivel 60° Seat

Specifications for Variant SKU: A-0604-MPS9 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Hose Barb, 1/4in Male NPTF
Material(s):	Steel
Special Properties:	Swivel, Compact Elbow
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0404-MPS9	04	1/4"	6.4mm	04	1/4-18	17mm	39mm	17mm	0.12 lbs
A-0406-MPS9	04	1/4"	6.4mm	06	3/8-18	19mm	39mm	22mm	0.13 lbs
A-0604-MPS9	06	3/8"	9.5mm	04	1/4-18	17mm	41mm	17mm	0.15 lbs
A-0606-MPS9	06	3/8"	9.5mm	06	3/8-18	20mm	41mm	22mm	0.17 lbs
A-0608-MPS9	06	3/8"	9.5mm	08	1/2-14	22mm	41mm	25mm	0.20 lbs
A-0808-MPS9	08	1/2"	12.7mm	08	1/2-14	23mm	48mm	25mm	0.29 lbs
A-1212-MPS9	12	3/4"	19.0mm	12	3/4-14	27mm	61mm	32mm	0.35 lbs
A-1616-MPS9	16	1"	25.4mm	16	1-11-1/2	35mm	70mm	41mm	0.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
