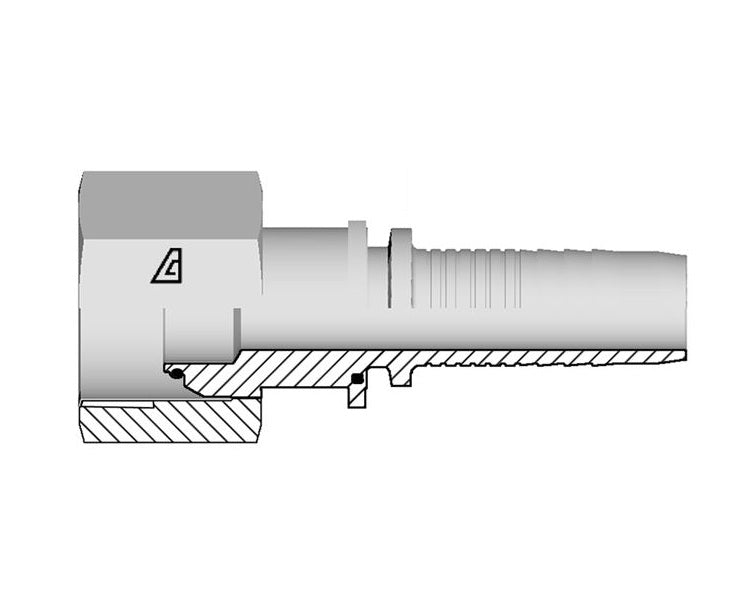

A-0606-FBPO Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -06 Hose ID x -06 Female BSPP O-Ring Swivel 60° Cone | Steel | Pack of 5

Save $1.08

$3.79

$3.79 - $3.79

$3.79

$2.71

$2.71 - $2.71

$2.71

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female BSP O-Ring Swivel 60° Cone

Specifications for Variant SKU: A-0606-FBPO Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Female BSPP
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	lbs/each
A-0304-FBPO	03	3/16"	4.8mm	04	1/4-19	16.0mm	19mm	0.04 lbs
A-0402-FBPP	04	1/4"	6.4mm	02	1/8-28	14.5mm	14mm	0.04 lbs
A-0404-FBPO	04	1/4"	6.4mm	04	1/4-19	16.0mm	19mm	0.06 lbs
A-0406-FBPO	04	1/4"	6.4mm	06	3/8-19	16.0mm	22mm	0.09 lbs
A-0504-FBPO	05	5/16"	7.9mm	04	1/4-19	17.3mm	19mm	0.07 lbs
A-0506-FBPO	05	5/16"	7.9mm	06	3/8-19	18.0mm	22mm	0.09 lbs
A-0604-FBPO	06	3/8"	9.5mm	04	1/4-19	17.3mm	19mm	0.09 lbs
A-0606-FBPO	06	3/8"	9.5mm	06	3/8-19	17.0mm	22mm	0.10 lbs
A-0608-FBPO	06	3/8"	9.5mm	08	1/2-14	17.0mm	27mm	0.15 lbs
A-0806-FBPO	08	1/2"	12.7mm	06	3/8-19	18.6mm	22mm	0.13 lbs
A-0808-FBPO	08	1/2"	12.7mm	08	1/2-14	18.0mm	27mm	0.16 lbs
A-0810-FBPO	08	1/2"	12.7mm	10	5/8-14	17.0mm	27mm	0.19 lbs
A-0812-FBPO	08	1/2"	12.7mm	12	3/4-14	22.0mm	32mm	0.22 lbs
A-1010-FBPO	10	5/8"	15.9mm	10	5/8-14	17.1mm	27mm	0.21 lbs
A-1012-FBPO	10	5/8"	15.9mm	12	3/4-14	20.0mm	32mm	0.26 lbs
A-1212-FBPO	12	3/4"	19.0mm	12	3/4-14	20.6mm	32mm	0.26 lbs
A-1216-FBPO	12	3/4"	19.0mm	16	1-11	23.9mm	38mm	0.44 lbs
A-1616-FBPO	16	1"	25.4mm	16	1-11	23.9mm	38mm	0.44 lbs
A-1620-FBPO	16	1"	25.4mm	20	1-1/4-11	30.5mm	50mm	0.90 lbs
A-2020-FBPO	20	1-1/4"	31.8mm	20	1-1/4-11	32.0mm	50mm	0.98 lbs
A-2024-FBPO	20	1-1/4"	31.8mm	24	1-1/2-11	41.9mm	55mm	1.32 lbs
A-2424-FBPO	24	1-1/2"	38.1mm	24	1-1/2-11	33.8mm	55mm	1.65 lbs
A-2432-FBPO	24	1-1/2"	38.1mm	32	2-11	36.0mm	70mm	1.98 lbs
A-3232-FBPO	32	2"	50.8mm	32	2-11	34.0mm	70mm	2.12 lbs
