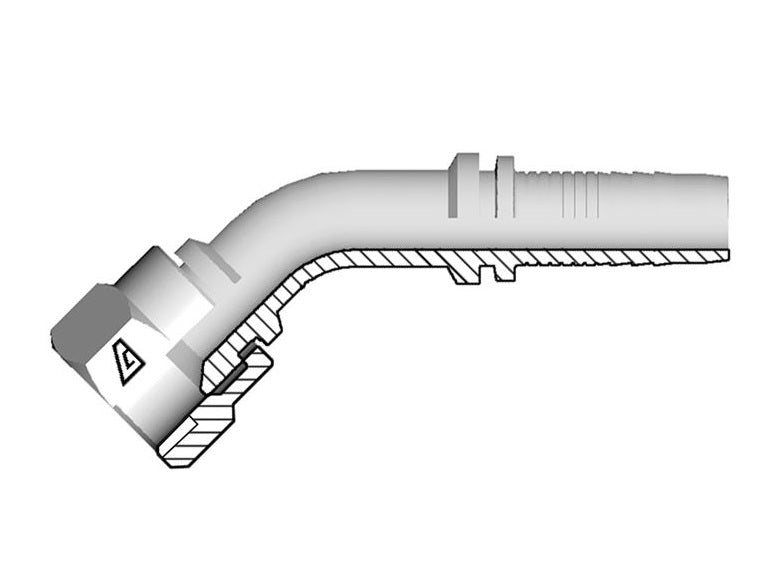

A-0606-FJ45 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -06 Hose ID x -06 Female JIC 37° Swivel | Steel

A-0606-FJ45 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -06 Hose ID x -06 Female JIC 37° Swivel | Steel | Pack of 5

Save $2.00 Save $2.00
$6.99
$6.99 - $6.99
$6.99
$4.99
$4.99 - $4.99
$4.99

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female JIC 37° Seat Swivel
Specifications for Variant SKU: A-0606-FJ45 Kuriyama | 5 |
Brand: Alfagomma
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Hose Barb, 3/8in Female JIC
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0404-FJ45 04 1/4" 6.4mm 04 7/16-20 36.6mm 10.0mm 16mm 0.08 lbs
A-0405-FJ45 04 1/4" 6.4mm 05 1/2-20 37.2mm 12.0mm 17mm 0.08 lbs
A-0406-FJ45 04 1/4" 6.4mm 06 9/16-18 39.4mm 11.0mm 19mm 0.10 lbs
A-0506-FJ45 05 5/16" 7.9mm 06 9/16-18 42.8mm 12.0mm 19mm 0.13 lbs
A-0606-FJ45 06 3/8" 9.5mm 06 9/16-18 46.3mm 11.0mm 19mm 0.13 lbs
A-0608-FJ45 06 3/8" 9.5mm 08 3/4-16 47.2mm 15.0mm 25mm 0.19 lbs
A-0808-FJ45 08 1/2" 12.7mm 08 3/4-16 51.6mm 15.0mm 25mm 0.23 lbs
A-0810-FJ45 08 1/2" 12.7mm 10 7/8-14 50.7mm 16.0mm 27mm 0.27 lbs
A-0812-FJ45 08 1/2" 12.7mm 12 1-1/16-12 57.0mm 21.0mm 32mm 0.39 lbs
A-1010-FJ45 10 5/8" 15.9mm 10 7/8-14 62.2mm 19.0mm 27mm 0.39 lbs
A-1012-FJ45 10 5/8" 15.9mm 12 1-1/16-12 68.6mm 21.0mm 32mm 0.39 lbs
A-1212-FJ45 12 3/4" 19.0mm 12 1-1/16-12 67.5mm 21.0mm 32mm 0.62 lbs
A-1214-FJ45 12 3/4" 19.0mm 14 1-3/16-12 67.6mm 23.0mm 36mm 0.51 lbs
A-1216-FJ45 12 3/4" 19.0mm 16 1-5/16-12 71.4mm 26.0mm 38mm 0.62 lbs
A-1616-FJ45 16 1" 25.4mm 16 1-5/16-12 79.5mm 24.0mm 38mm 0.88 lbs
A-1620-FJ45 16 1" 25.4mm 20 1-5/8-12 81.9mm 37.0mm 50mm 1.28 lbs
A-2020-FJ45 20 1-1/4" 31.8mm 20 1-5/8-12 97.1mm 37.0mm 50mm 1.56 lbs
A-2024-FJ45 20 1-1/4" 31.8mm 24 1 7/8-12 107.0mm 39.5mm 55mm 1.74 lbs
A-2424-FJ45 24 1-1/2" 38.1mm 24 1-7/8-12 112.7mm 43.0mm 55mm 2.09 lbs
A-3232-FJ45 32 2" 50.8mm 32 2-1/2-12 159.9mm 67.0mm 70mm 2.21 lbs
