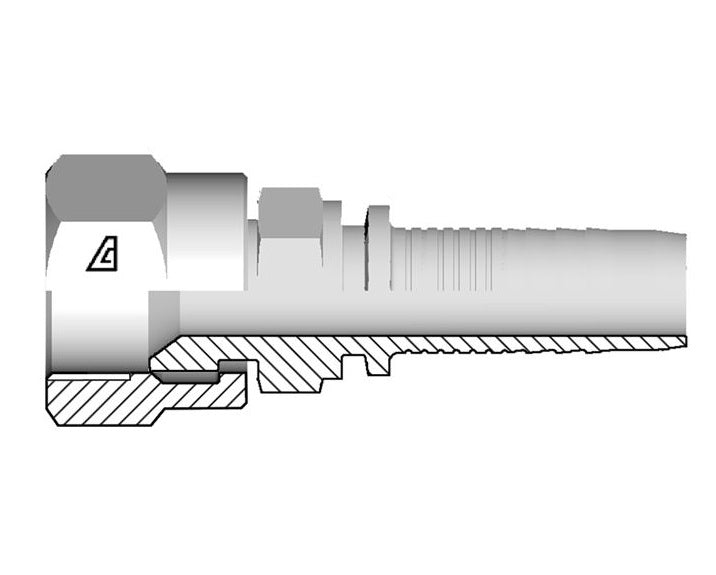

A-0606-FJDH-SS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -06 Hose ID x -06 Female JIC 37° | Stainless Steel

Save $8.78

$30.73

$30.73 - $30.73

$30.73

$21.95

$21.95 - $21.95

$21.95

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | Hose Barb x Female JIC 37° Seat

Specifications for Variant SKU: A-0606-FJDH-SS Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Female JIC
Material(s):	Stainless Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Stainless Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Hex Diameter CH2	Weight
Steel Part Number	Stainless Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0304-FJDH	-	03	3/16"	4.8mm	04	7/16-20	18.1mm	12mm	16mm	0.05 lbs
A-0404-FJDH	A-0404-FJDH-SS	04	1/4"	6.4mm	04	7/16-20	19.6mm	14mm	16mm	0.06 lbs
A-0405-FJDH	-	04	1/4"	6.4mm	05	1/2-20	20.3mm	14mm	17mm	0.07 lbs
A-0406-FJDH	-	04	1/4"	6.4mm	06	9/16-18	20.3mm	14mm	19mm	0.09 lbs
A-0506-FJDH	-	05	5/16"	7.9mm	06	9/16-18	20.3mm	14mm	19mm	0.08 lbs
A-0604-FJDH	-	06	3/8"	9.5mm	04	7/16-20	20.6mm	17mm	16mm	0.08 lbs
A-0605-FJDH	-	06	3/8"	9.5mm	05	1/2-20	21.3mm	16mm	17mm	0.90 lbs
A-0606-FJDH	A-0606-FJDH-SS	06	3/8"	9.5mm	06	9/16-18	21.3mm	17mm	19mm	0.10 lbs
A-0608-FJDH	-	06	3/8"	9.5mm	08	3/4-16	24.8mm	19mm	25mm	0.17 lbs
A-0610-FJDH	-	06	3/8"	9.5mm	10	7/8-14	25.8mm	22mm	27mm	0.20 lbs
A-0806-FJDH	-	08	1/2"	12.7mm	06	9/16-18	23.1mm	19mm	19mm	0.15 lbs
A-0808-FJDH	A-0808-FJDH-SS	08	1/2"	12.7mm	08	3/4-16	25.6mm	19mm	25mm	0.20 lbs
A-0810-FJDH	-	08	1/2"	12.7mm	10	7/8-14	26.6mm	22mm	27mm	0.22 lbs
A-0812-FJDH	-	08	1/2"	12.7mm	12	1-1/16-12	28.1mm	25mm	32mm	0.30 lbs
A-1008-FJDH	-	10	5/8"	15.9mm	08	3/4-16	26.6mm	24mm	25mm	0.30 lbs
A-1010-FJDH	A-1010-FJDH-SS	10	5/8"	15.9mm	10	7/8-14	27.6mm	24mm	27mm	0.27 lbs
A-1012-FJDH	-	10	5/8"	15.9mm	12	1-1/16-12	28.1mm	25mm	32mm	0.32 lbs
A-1210-FJDH	-	12	3/4"	19.0mm	10	7/8-14	28.1mm	27mm	32mm	0.31 lbs
A-1212-FJDH	A-1212-FJDH-SS	12	3/4"	19.0mm	12	1-1/16-12	28.6mm	27mm	32mm	0.35 lbs
A-1214-FJDH	-	12	3/4"	19.0mm	14	1-3/16-12	29.9mm	32mm	36mm	0.44 lbs
A-1216-FJDH	-	12	3/4"	19.0mm	16	1-5/16-12	32.1mm	32mm	38mm	0.49 lbs
A-1416-FJDH	-	14	7/8"	22.2mm	16	1-5/16-12	32.1mm	32mm	38mm	0.46 lbs
A-1612-FJDH	-	16	1"	25.4mm	12	1-1/16-12	31.4mm	32mm	32mm	0.55 lbs
A-1616-FJDH	A-1616-FJDH-SS	16	1"	25.4mm	16	1-5/16-12	32.9mm	32mm	38mm	0.62 lbs
A-1820-FJDH	-	18	1-1/8"	29.0mm	20	1-5/8-12	37.5mm	41mm	50mm	0.63 lbs
A-2020-FJDH	A-2020-FJDH-SS	20	1-1/4"	31.8mm	20	1-5/8-12	39.1mm	41mm	50mm	0.77 lbs
A-2224-FJDH	-	22	1-3/8"	35.0mm	24	1-7/8-12	43.4mm	50mm	55mm	0.79 lbs
A-2424-FJDH	A-2424-FJDH-SS	24	1-1/2"	38.1mm	24	1-7/8-12	43.4mm	50mm	55mm	1.98 lbs
A-2932-FJDH	-	29	1-13/16"	46.0mm	32	2-1/2-12	49.0mm	65mm	70mm	2.31 lbs
A-3232-FJDH	A-3232-FJDH-SS	32	2"	50.8mm	32	2-1/2-12	49.0mm	65mm	70mm	3.09 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
