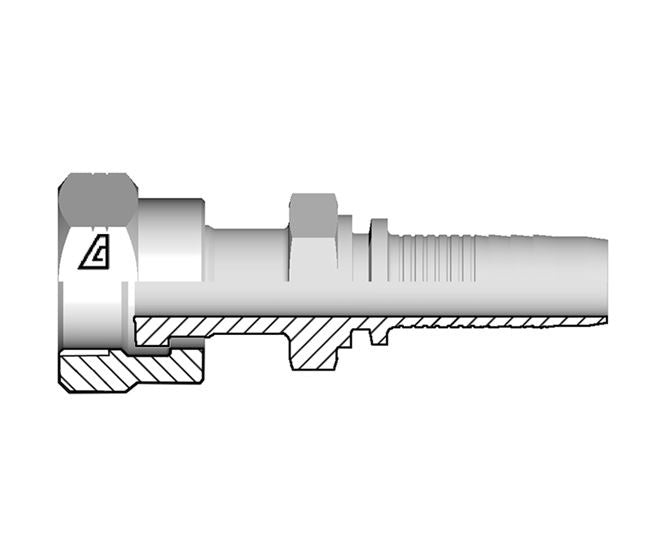

A-0606-FOFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -06 Hose ID x -06 Female O-Ring Face Seal | Steel | Pack of 5

Save $2.10

$7.36

$7.36 - $7.36

$7.36

$5.26

$5.26 - $5.26

$5.26

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | Hose Barb x Female O-Ring Face Seal

Specifications for Variant SKU: A-0606-FOFS Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Hose Barb, 3/8in Female O-Ring Face Seal
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0404-FOFS	04	1/4"	6.4mm	04	9/16-18	27.3mm	14mm	17mm	0.08 lbs
A-0406-FOFS	04	1/4"	6.4mm	06	11/16-16	30.3mm	17mm	22mm	0.13 lbs
A-0506-FOFS	05	5/16"	7.9mm	06	11/16-16	30.3mm	17mm	22mm	0.13 lbs
A-0606-FOFS	06	3/8"	9.5mm	06	11/16-16	30.3mm	17mm	22mm	0.14 lbs
A-0608-FOFS	06	3/8"	9.5mm	08	13/16-16	35.3mm	22mm	24mm	0.21 lbs
A-0806-FOFS	08	1/2"	12.7mm	06	11/16-16	32.1mm	19mm	22mm	0.22 lbs
A-0808-FOFS	08	1/2"	12.7mm	08	13/16-16	36.1mm	22mm	24mm	0.22 lbs
A-0810-FOFS	08	1/2"	12.7mm	10	1-14	39.6mm	24mm	30mm	0.32 lbs
A-0812-FOFS	08	1/2"	12.7mm	12	1-3/16-12	42.1mm	30mm	36mm	0.32 lbs
A-1008-FOFS	10	5/8"	15.9mm	08	13/16-16	39.6mm	24mm	24mm	0.31 lbs
A-1010-FOFS	10	5/8"	15.9mm	10	1-14	39.6mm	24mm	30mm	0.32 lbs
A-1012-FOFS	10	5/8"	15.9mm	12	1-3/16-12	42.1mm	30mm	36mm	0.50 lbs
A-1210-FOFS	12	3/4"	19.0mm	10	1-14	40.1mm	27mm	30mm	0.50 lbs
A-1212-FOFS	12	3/4"	19.0mm	12	1-3/16-12	42.6mm	30mm	36mm	0.50 lbs
A-1216-FOFS	12	3/4"	19.0mm	16	1-7/16-12	48.6mm	36mm	41mm	0.73 lbs
A-1612-FOFS	16	1"	25.4mm	12	1-3/16-12	45.4mm	32mm	36mm	0.73 lbs
A-1616-FOFS	16	1"	25.4mm	16	1-7/16-12	49.4mm	36mm	41mm	0.73 lbs
A-1620-FOFS	16	1"	25.4mm	20	1-11/16-12	50.4mm	41mm	50mm	0.79 lbs
A-2020-FOFS	20	1-1/4"	31.8mm	20	1-11/16-12	52.0mm	41mm	50mm	1.10 lbs
A-2424-FOFS	24	1-1/2"	38.1mm	24	2-12	56.5mm	50mm	60mm	1.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
