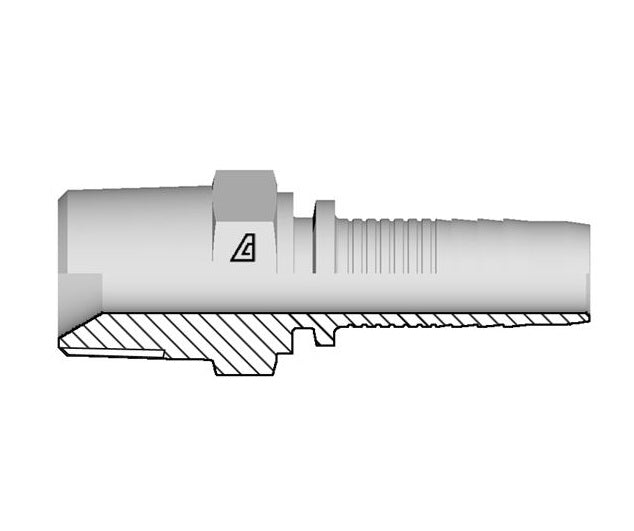

A-0606-MBPT Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -06 Hose ID x -06 Male BSPT / JIS | Steel

A-0606-MBPT Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -06 Hose ID x -06 Male BSPT / JIS | Steel

Save $1.20 Save $1.20
$4.20
$4.20 - $4.20
$4.20
$3.00
$3.00 - $3.00
$3.00

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male BSPT / JIS
Specifications for Variant SKU: A-0606-MBPT Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0302-MBPT 03 3/16" 4.8mm 02 1/8-28 20.8mm 12mm 0.03 lbs
A-0402-MBPT 04 1/4" 6.4mm 02 1/8-28 22.3mm 12mm 0.04 lbs
A-0404-MBPT 04 1/4" 6.4mm 04 1/4-19 26.3mm 17mm 0.06 lbs
A-0406-MBPT 04 1/4" 6.4mm 06 3/8-19 26.3mm 19mm 0.08 lbs
A-0506-MBPT 05 5/16" 7.9mm 06 3/8-19 26.3mm 19mm 0.09 lbs
A-0606-MBPT 06 3/8" 9.5mm 06 3/8-19 26.3mm 19mm 0.09 lbs
A-0608-MBPT 06 3/8" 9.5mm 08 1/2-14 33.3mm 22mm 0.15 lbs
A-0808-MBPT 08 1/2" 12.7mm 08 1/2-14 34.1mm 22mm 0.17 lbs
A-1012-MBPT 10 5/8" 15.9mm 12 3/4-14 34.1mm 27mm 0.27 lbs
A-1212-MBPT 12 3/4" 19.0mm 12 3/4-14 34.6mm 27mm 0.27 lbs
A-1216-MBPT 12 3/4" 19.0mm 16 1-11 42.6mm 36mm 0.44 lbs
A-1616-MBPT 16 1" 25.4mm 16 1-11 43.4mm 36mm 0.53 lbs
A-2020-MBPT 20 1-1/4" 31.8mm 20 1-1/4-11 49.0mm 46mm 0.90 lbs
A-2424-MBPT 24 1-1/2" 38.1mm 24 1-1/2-11 49.0mm 50mm 1.08 lbs
A-3232-MBPT 32 2" 50.8mm 32 2-11 52.0mm 65mm 1.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
