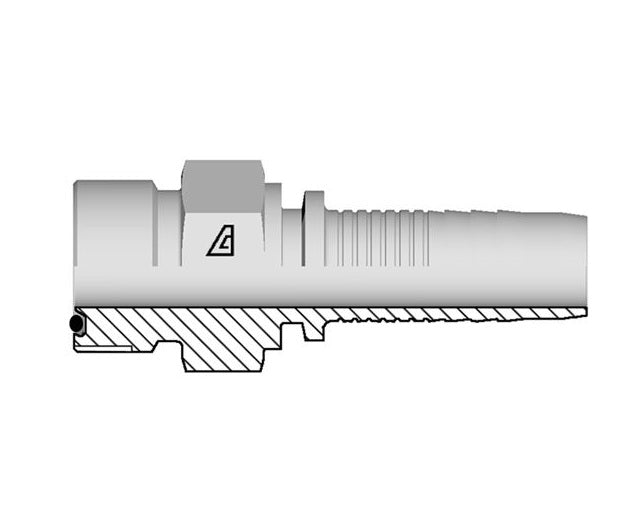

A-0610-MOFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -06 Hose ID x -10 Male O-Ring Face Seal | Steel

A-0610-MOFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -06 Hose ID x -10 Male O-Ring Face Seal | Steel

Save $5.70 Save $5.70
$19.95
$19.95 - $19.95
$19.95
$14.25
$14.25 - $14.25
$14.25

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male O-Ring Face Seal
Specifications for Variant SKU: A-0610-MOFS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Hose Barb, 5/8in Male O-Ring Face Seal
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0404-MOFS 04 1/4" 6.4mm 04 9/16-18 22.3mm 17mm 0.07 lbs
A-0406-MOFS 04 1/4" 6.4mm 06 11/16-16 24.3mm 19mm 0.09 lbs
A-0606-MOFS 06 3/8" 9.5mm 06 11/16-16 24.3mm 19mm 0.11 lbs
A-0608-MOFS 06 3/8" 9.5mm 08 13/16-16 26.3mm 22mm 0.13 lbs
A-0610-MOFS 06 3/8" 9.5mm 10 1-14 29.8mm 27mm 0.19 lbs
A-0808-MOFS 08 1/2" 12.7mm 08 1-3/16-16 27.1mm 22mm 0.17 lbs
A-0810-MOFS 08 1/2" 12.7mm 10 1-14 30.6mm 27mm 0.22 lbs
A-0812-MOFS 08 1/2" 12.7mm 12 1-3/16-12 34.1mm 32mm 0.24 lbs
A-1010-MOFS 10 5/8" 15.9mm 10 1-14 30.6mm 27mm 0.23 lbs
A-1012-MOFS 10 5/8" 15.9mm 12 1-3/16-12 34.1mm 32mm 0.30 lbs
A-1210-MOFS 12 3/4" 19.0mm 10 1-14 31.1mm 27mm 0.28 lbs
A-1212-MOFS 12 3/4" 19.0mm 12 1-3/16-12 34.6mm 32mm 0.40 lbs
A-1216-MOFS 12 3/4" 19.0mm 16 1-7/16-12 38.1mm 41mm 0.58 lbs
A-1616-MOFS 16 1" 25.4mm 16 1-7/16-12 37.9mm 38mm 0.60 lbs
A-1620-MOFS 16 1" 25.4mm 20 1-11/16-12 39.9mm 46mm 0.78 lbs
A-2020-MOFS 20 1-1/4" 31.8mm 20 1-11/16-12 41.5mm 46mm 0.90 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
