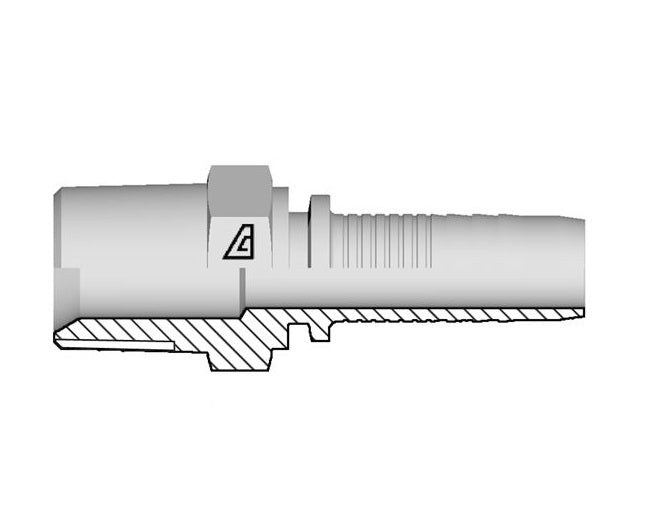

A-0808-MNPT Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -08 Hose ID x -08 Male NPTF 60° Seat | Steel | Pack of 5

Save $1.07

$3.74

$3.74 - $3.74

$3.74

$2.67

$2.67 - $2.67

$2.67

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat

Specifications for Variant SKU: A-0808-MNPT Kuriyama \| 5 \|
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 1/2in Male NPTF
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Stainless Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Weight
Steel Part Number	Stainless Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	lbs/each
A-0302-MNPT	-	03	3/16"	4.8mm	02	1/8-27	19.8mm	12mm	0.03 lbs
A-0304-MNPT	-	03	3/16"	4.8mm	04	1/4-18	21.3mm	17mm	0.04 lbs
A-0402-MNPT	-	04	1/4"	6.4mm	02	1/8-27	21.3mm	14mm	0.04 lbs
A-0404-MNPT	A-0404-MNPT-SS	04	1/4"	6.4mm	04	1/4-18	26.8mm	17mm	0.06 lbs
A-0406-MNPT	-	04	1/4"	6.4mm	06	3/8-18	27.8mm	19mm	0.08 lbs
A-0408-MNPT	-	04	1/4"	6.4mm	08	1/2-14	28.6mm	22mm	0.20 lbs
A-0504-MNPT	-	05	5/16"	7.9mm	04	1/4-18	26.8mm	17mm	0.07 lbs
A-0506-MNPT	-	05	5/16"	7.9mm	06	3/8-18	27.8mm	19mm	0.11 lbs
A-0604-MNPT	-	06	3/8"	9.5mm	04	1/4-18	26.8mm	17mm	0.07 lbs
A-0606-MNPT	A-0606-MNPT-SS	06	3/8"	9.5mm	06	3/8-18	27.8mm	19mm	0.09 lbs
A-0608-MNPT	-	06	3/8"	9.5mm	08	1/2-14	31.3mm	22mm	0.15 lbs
A-0806-MNPT	-	08	1/2"	12.7mm	06	3/8-18	28.6mm	19mm	0.12 lbs
A-0808-MNPT	A-0808-MNPT-SS	08	1/2"	12.7mm	08	1/2-14	32.1mm	22mm	0.17 lbs
A-0812-MNPT	-	08	1/2"	12.7mm	12	3/4-14	34.1mm	27mm	0.22 lbs
A-1008-MNPT	A-1008-MNPT-SS	10	5/8"	15.9mm	08	1/2-14	32.1mm	27mm	0.23 lbs
A-1012-MNPT	A-1012-MNPT-SS	10	5/8"	15.9mm	12	3/4-14	34.1mm	27mm	0.24 lbs
A-1208-MNPT	-	12	3/4"	19.0mm	08	1/2-14	32.1mm	19mm	0.25 lbs
A-1212-MNPT	A-1212-MNPT-SS	12	3/4"	19.0mm	12	3/4-14	34.6mm	27mm	0.26 lbs
A-1216-MNPT	-	12	3/4"	19.0mm	16	1-11-1/2	43.6mm	36mm	0.46 lbs
A-1416-MNPT	-	14	7/8"	22.0mm	16	1-11-1/2	43.6mm	36mm	0.48 lbs
A-1612-MNPT	-	16	1"	25.4mm	12	3/4-14	34.6mm	27mm	0.51 lbs
A-1616-MNPT	A-1616-MNPT-SS	16	1"	25.4mm	16	1-11 1/2	44.4mm	36mm	0.53 lbs
A-1620-MNPT	-	16	1"	25.4mm	20	1-1/4-11-1/2	47.4mm	46mm	1.10 lbs
A-1820-MNPT	-	18	1-1/8"	29.0mm	20	1-1/4-11-1/2	49.0mm	46mm	1.10 lbs
A-2020-MNPT	A-2020-MNPT-SS	20	1-1/4"	31.8mm	20	1-1/4-11-1/2	49.0mm	46mm	0.90 lbs
A-2224-MNPT	-	22	1-3/8"	35.0mm	24	1-1/2-11-1/2	50.5mm	50mm	1.10 lbs
A-2424-MNPT	A-2424-MNPT-SS	24	1-1/2"	38.1mm	24	1-1/2-11-1/2	50.5mm	50mm	1.10 lbs
A-2932-MNPT	-	29	1-13/16"	46.0mm	24	2-11-1/2	54.0mm	65mm	2.86 lbs
A-3232-MNPT	A-3232-MNPT-SS	32	2"	50.8mm	32	2-11-1/2	54.2mm	65mm	2.87 lbs
