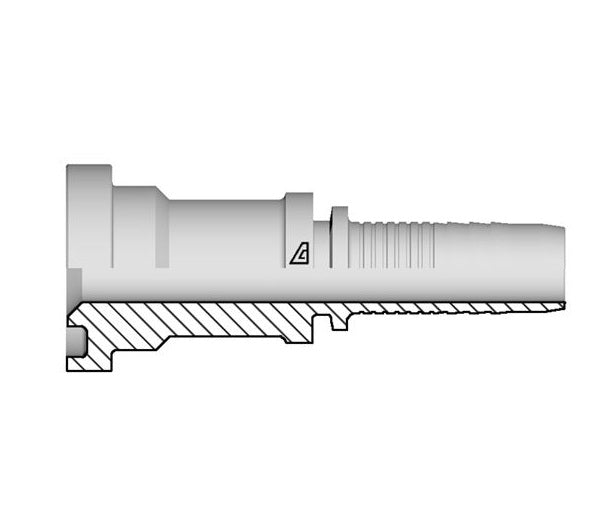

A-0812-C61S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | -08 Hose ID x -12 Code 61 Flange | Steel

Save $7.85

$27.48

$27.48 - $27.48

$27.48

$19.63

$19.63 - $19.63

$19.63

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 61 Flange

Specifications for Variant SKU: A-0812-C61S Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, 3/4in Code 61 Flange
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	Max. Working Pressure	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	PSI	lbs/each
A-0808-C61S	08	1/2"	12.7mm	1.19"	30.2mm	41.0mm	5000 PSI	0.25 lbs
A-0812-C61S	08	1/2"	12.7mm	1.50"	38.1mm	42.0mm	5000 PSI	0.35 lbs
A-1212-C61S	12	3/4"	19.0mm	1.50"	38.1mm	42.5mm	5000 PSI	0.43 lbs
A-1216-C61S	12	3/4"	19.0mm	1.75"	44.5mm	50.5mm	5000 PSI	0.56 lbs
A-1616-C61S	16	1"	25.4mm	1.75"	44.5mm	51.4mm	5000 PSI	0.75 lbs
A-1620-C61S	16	1"	25.4mm	2.00"	50.8mm	53.9mm	4000 PSI	0.77 lbs
A-2020-C61S	20	1-1/4"	31.8mm	2.00"	50.8mm	55.5mm	4000 PSI	0.94 lbs
A-2024-C61S	20	1-1/4"	31.8mm	2.38"	60.3mm	58.5mm	3000 PSI	1.12 lbs
A-2424-C61S	24	1-1/2"	38.1mm	2.38"	60.3mm	58.5mm	3000 PSI	1.27 lbs
A-2432-C61S	24	1-1/2"	38.1mm	2.81"	71.4mm	70.0mm	3000 PSI	1.98 lbs
A-3232-C61S	32	2"	50.8mm	2.81"	71.4mm	70.0mm	3000 PSI	2.05 lbs
A-4040-C61S	40	2-1/2"	63.5mm	3.31"	84.1mm	117.0mm	2500 PSI	2.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
