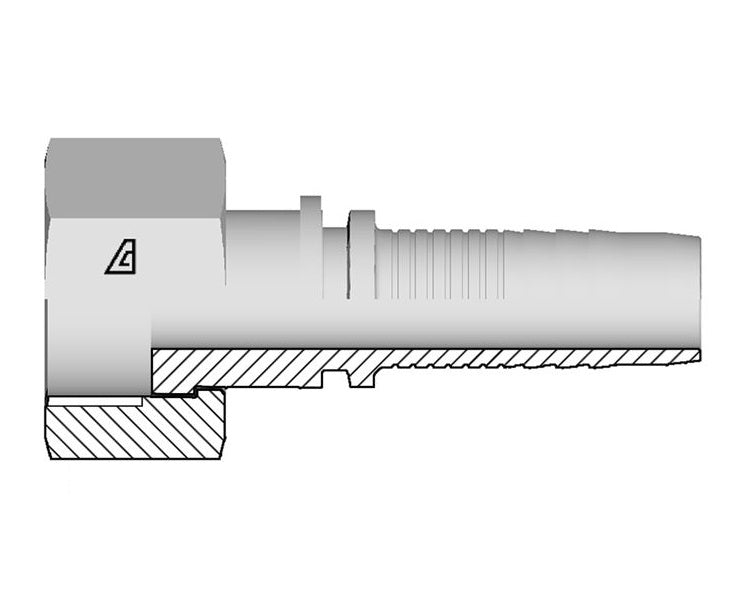

A-0812-FBFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -08 Hose ID x -12 Female BSPP Flat Seat Swivel | Steel

A-0812-FBFS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -08 Hose ID x -12 Female BSPP Flat Seat Swivel | Steel

Save $4.96 Save $4.96
$17.37
$17.37 - $17.37
$17.37
$12.41
$12.41 - $12.41
$12.41

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female BSP Flat Seat Swivel


Specifications for Variant SKU: A-0812-FBFS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 3/4in Female BSPP
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0404-FBFS 04 1/4" 6.4mm 04 1/4-19 20.3mm 19mm 0.06 lbs
A-0606-FBFS 06 3/8" 9.5mm 06 3/8-19 20.3mm 22mm 0.09 lbs
A-0608-FBFS 06 3/8" 9.5mm 08 1/2-14 20.8mm 27mm 0.14 lbs
A-0808-FBFS 08 1/2" 12.7mm 08 1/2-14 21.6mm 27mm 0.16 lbs
A-0812-FBFS 08 1/2" 12.7mm 12 3/4-14 24.6mm 32mm 0.23 lbs
A-1010-FBFS 10 5/8" 15.9mm 10 5/8-14 15.3mm 27mm 0.22 lbs
A-1012-FBFS 10 5/8" 15.9mm 12 3/4-14 17.6mm 32mm 0.44 lbs
A-1212-FBFS 12 3/4" 19.0mm 12 3/4-14 18.0mm 32mm 0.26 lbs
A-1616-FBFS 16 1" 25.4mm 16 1-11 19.9mm 38mm 0.40 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
