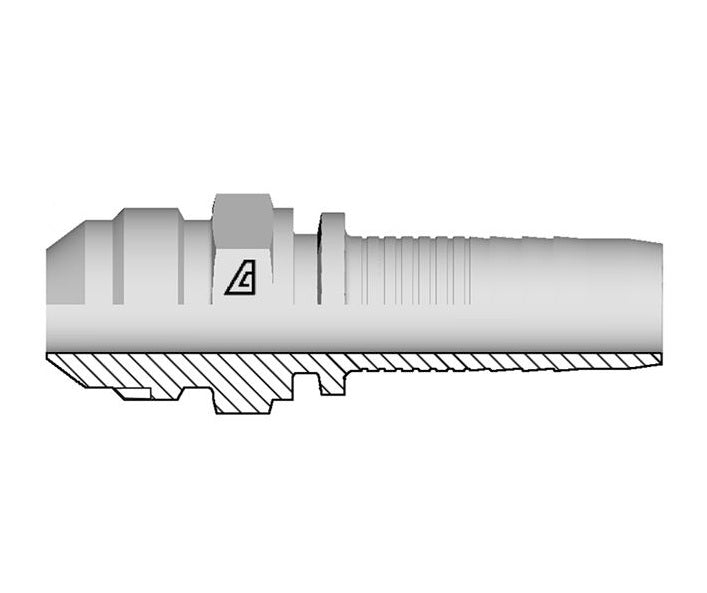

A-0812-MJIC Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -08 Hose ID x -12 Male JIC 37° | Steel

A-0812-MJIC Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -08 Hose ID x -12 Male JIC 37° | Steel

Save $2.48 Save $2.48
$8.69
$8.69 - $8.69
$8.69
$6.21
$6.21 - $6.21
$6.21

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male JIC 37° Seat
Specifications for Variant SKU: A-0812-MJIC Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Hose Barb, 3/4in Male JIC
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0304-MJIC 03 3/16" 4.8mm 04 7/16-20 23.4mm 12mm 0.03 lbs
A-0404-MJIC 04 1/4" 6.4mm 04 7/16-20 25.3mm 12mm 0.04 lbs
A-0405-MJIC 04 1/4" 6.4mm 05 1/2-20 25.3mm 14mm 0.05 lbs
A-0406-MJIC 04 1/4" 6.4mm 06 9/16-18 26.3mm 17mm 0.06 lbs
A-0505-MJIC 05 5/16" 7.9mm 05 1/2-20 25.3mm 14mm 0.05 lbs
A-0506-MJIC 05 5/16" 7.9mm 06 9/16-18 26.3mm 17mm 0.07 lbs
A-0605-MJIC 06 3/8" 9.5mm 05 1/2-20 26.3mm 17mm 0.07 lbs
A-0606-MJIC 06 3/8" 9.5mm 06 9/16-18 26.3mm 17mm 0.07 lbs
A-0608-MJIC 06 3/8" 9.5mm 08 3/4-16 29.8mm 19mm 0.11 lbs
A-0808-MJIC 08 1/2" 12.7mm 08 3/4-16 29.8mm 19mm 0.12 lbs
A-0810-MJIC 08 1/2" 12.7mm 10 7/8-14 34.6mm 24mm 0.19 lbs
A-0812-MJIC 08 1/2" 12.7mm 12 1-1/16-12 37.1mm 27mm 0.23 lbs
A-1010-MJIC 10 5/8" 15.9mm 10 7/8-14 34.6mm 24mm 0.18 lbs
A-1012-MJIC 10 5/8" 15.9mm 12 1-1/16-12 37.1mm 27mm 0.23 lbs
A-1212-MJIC 12 3/4" 19.0mm 12 1-1/16-12 37.6mm 27mm 0.27 lbs
A-1214-MJIC 12 3/4" 19.0mm 14 1-3/16-12 40.1mm 32mm 0.36 lbs
A-1216-MJIC 12 3/4" 19.0mm 16 1-5/16-12 42.6mm 36mm 0.54 lbs
A-1616-MJIC 16 1" 25.4mm 16 1-5/16-12 43.4mm 36mm 0.51 lbs
A-1620-MJIC 16 1" 25.4mm 20 1-5/8-12 46.9mm 46mm 0.77 lbs
A-1616-MJIC 20 1-1/4" 31.8mm 20 1-5/8-12 48.5mm 46mm 0.89 lbs
A-2024-MJIC 20 1-1/4" 31.8mm 24 1-7/8-12 52.5mm 50mm 1.13 lbs
A-2424-MJIC 24 1-1/2" 38.1mm 24 1-7/8-12 52.5mm 50mm 1.29 lbs
A-3232-MJIC 32 2" 50.8mm 32 2-1/2-12 52.0mm 65mm 3.97 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
