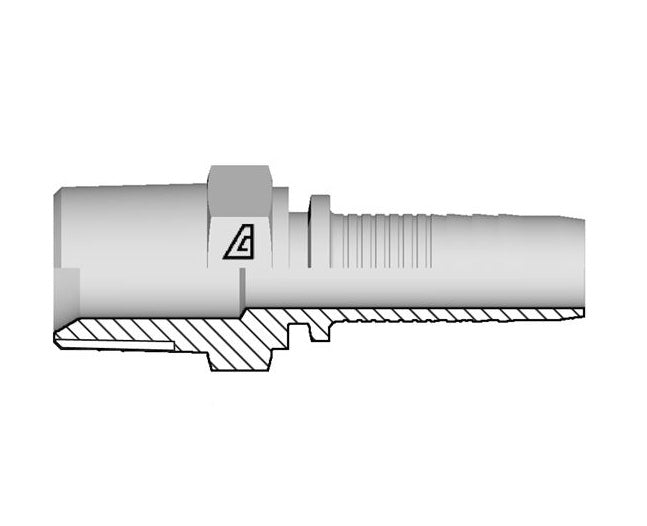

A-1008-MNPT Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 Hose ID x -08 Male NPTF 60° Seat | Steel

A-1008-MNPT Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -10 Hose ID x -08 Male NPTF 60° Seat | Steel

Save $3.28 Save $3.28
$11.47
$11.47 - $11.47
$11.47
$8.19
$8.19 - $8.19
$8.19

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF 60° Seat
Specifications for Variant SKU: A-1008-MNPT Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Hose Barb, 1/2in Male NPTF
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0302-MNPT - 03 3/16" 4.8mm 02 1/8-27 19.8mm 12mm 0.03 lbs
A-0304-MNPT - 03 3/16" 4.8mm 04 1/4-18 21.3mm 17mm 0.04 lbs
A-0402-MNPT - 04 1/4" 6.4mm 02 1/8-27 21.3mm 14mm 0.04 lbs
A-0404-MNPT A-0404-MNPT-SS 04 1/4" 6.4mm 04 1/4-18 26.8mm 17mm 0.06 lbs
A-0406-MNPT - 04 1/4" 6.4mm 06 3/8-18 27.8mm 19mm 0.08 lbs
A-0408-MNPT - 04 1/4" 6.4mm 08 1/2-14 28.6mm 22mm 0.20 lbs
A-0504-MNPT - 05 5/16" 7.9mm 04 1/4-18 26.8mm 17mm 0.07 lbs
A-0506-MNPT - 05 5/16" 7.9mm 06 3/8-18 27.8mm 19mm 0.11 lbs
A-0604-MNPT - 06 3/8" 9.5mm 04 1/4-18 26.8mm 17mm 0.07 lbs
A-0606-MNPT A-0606-MNPT-SS 06 3/8" 9.5mm 06 3/8-18 27.8mm 19mm 0.09 lbs
A-0608-MNPT - 06 3/8" 9.5mm 08 1/2-14 31.3mm 22mm 0.15 lbs
A-0806-MNPT - 08 1/2" 12.7mm 06 3/8-18 28.6mm 19mm 0.12 lbs
A-0808-MNPT A-0808-MNPT-SS 08 1/2" 12.7mm 08 1/2-14 32.1mm 22mm 0.17 lbs
A-0812-MNPT - 08 1/2" 12.7mm 12 3/4-14 34.1mm 27mm 0.22 lbs
A-1008-MNPT A-1008-MNPT-SS 10 5/8" 15.9mm 08 1/2-14 32.1mm 27mm 0.23 lbs
A-1012-MNPT A-1012-MNPT-SS 10 5/8" 15.9mm 12 3/4-14 34.1mm 27mm 0.24 lbs
A-1208-MNPT - 12 3/4" 19.0mm 08 1/2-14 32.1mm 19mm 0.25 lbs
A-1212-MNPT A-1212-MNPT-SS 12 3/4" 19.0mm 12 3/4-14 34.6mm 27mm 0.26 lbs
A-1216-MNPT - 12 3/4" 19.0mm 16 1-11-1/2 43.6mm 36mm 0.46 lbs
A-1416-MNPT - 14 7/8" 22.0mm 16 1-11-1/2 43.6mm 36mm 0.48 lbs
A-1612-MNPT - 16 1" 25.4mm 12 3/4-14 34.6mm 27mm 0.51 lbs
A-1616-MNPT A-1616-MNPT-SS 16 1" 25.4mm 16 1-11 1/2 44.4mm 36mm 0.53 lbs
A-1620-MNPT - 16 1" 25.4mm 20 1-1/4-11-1/2 47.4mm 46mm 1.10 lbs
A-1820-MNPT - 18 1-1/8" 29.0mm 20 1-1/4-11-1/2 49.0mm 46mm 1.10 lbs
A-2020-MNPT A-2020-MNPT-SS 20 1-1/4" 31.8mm 20 1-1/4-11-1/2 49.0mm 46mm 0.90 lbs
A-2224-MNPT - 22 1-3/8" 35.0mm 24 1-1/2-11-1/2 50.5mm 50mm 1.10 lbs
A-2424-MNPT A-2424-MNPT-SS 24 1-1/2" 38.1mm 24 1-1/2-11-1/2 50.5mm 50mm 1.10 lbs
A-2932-MNPT - 29 1-13/16" 46.0mm 24 2-11-1/2 54.0mm 65mm 2.86 lbs
A-3232-MNPT A-3232-MNPT-SS 32 2" 50.8mm 32 2-11-1/2 54.2mm 65mm 2.87 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
