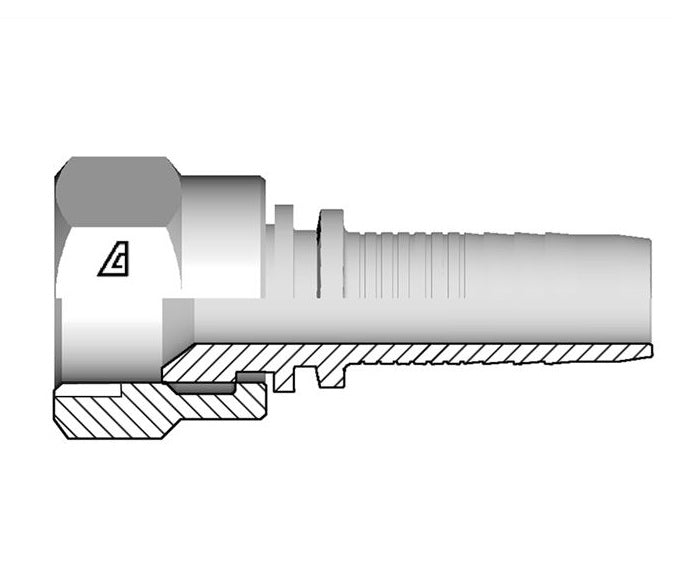

A-1210-FJSH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -10 Female JIC 37° | Steel

A-1210-FJSH Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -10 Female JIC 37° | Steel

Save $4.82 Save $4.82
$16.87
$16.87 - $16.87
$16.87
$12.05
$12.05 - $12.05
$12.05

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female JIC 37° Seat
Specifications for Variant SKU: A-1210-FJSH Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 5/8in Female JIC
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0304-FJSH 03 3/16" 4.8mm 04 7/16-20 14.3mm 16mm 0.04 lbs
A-0404-FJSH 04 1/4" 6.4mm 04 7/16-20 14.6mm 16mm 0.04 lbs
A-0405-FJSH 04 1/4" 6.4mm 05 1/2-20 15.3mm 17mm 0.06 lbs
A-0406-FJSH 04 1/4" 6.4mm 06 9/16-18 15.3mm 19mm 0.07 lbs
A-0505-FJSH 05 5/16" 7.9mm 05 1/2-20 15.3mm 17mm 0.07 lbs
A-0506-FJSH 05 5/16" 7.9mm 06 9/16-18 15.3mm 19mm 0.08 lbs
A-0606-FJSH 06 3/8" 9.5mm 06 9/16-18 15.3mm 19mm 0.08 lbs
A-0608-FJSH 06 3/8" 9.5mm 08 3/4-16 17.8mm 25mm 0.14 lbs
A-0808-FJSH 08 1/2" 12.7mm 08 3/4-16 18.6mm 25mm 0.16 lbs
A-0810-FJSH 08 1/2" 12.7mm 10 7/8-14 19.6mm 27mm 0.19 lbs
A-0812-FJSH 08 1/2" 12.7mm 12 1-1/16-12 22.1mm 32mm 0.25 lbs
A-1010-FJSH 10 5/8" 15.9mm 10 7/8-14 19.6mm 27mm 0.21 lbs
A-1012-FJSH 10 5/8" 15.9mm 12 1-1/16-12 20.1mm 32mm 0.26 lbs
A-1210-FJSH 12 3/4" 19.0mm 10 7/8-14 20.0mm 27mm 0.28 lbs
A-1212-FJSH 12 3/4" 19.0mm 12 1-1/16-12 20.0mm 32mm 0.28 lbs
A-1214-FJSH 12 3/4" 19.0mm 14 1-3/16-12 20.0mm 36mm 0.33 lbs
A-1216-FJSH 12 3/4" 19.0mm 16 1-5/16-12 22.1mm 38mm 0.38 lbs
A-1616-FJSH 16 1" 25.4mm 16 1-5/16-12 23.9mm 38mm 0.46 lbs
A-1620-FJSH 16 1" 25.4mm 20 1-5/8-12 26.5mm 50mm 0.88 lbs
A-1616-FJSH 20 1-1/4" 31.8mm 20 1-5/8-12 28.1mm 50mm 0.96 lbs
A-2024-FJSH 20 1-1/4" 31.8mm 24 1-7/8-12 30.4mm 55mm 1.18 lbs
A-2424-FJSH 24 1-1/2" 38.1mm 24 1-7/8-12 31.4mm 55mm 1.24 lbs
A-3232-FJSH 32 2" 50.8mm 32 2-1/2-12 32.0mm 70mm 2.19 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
