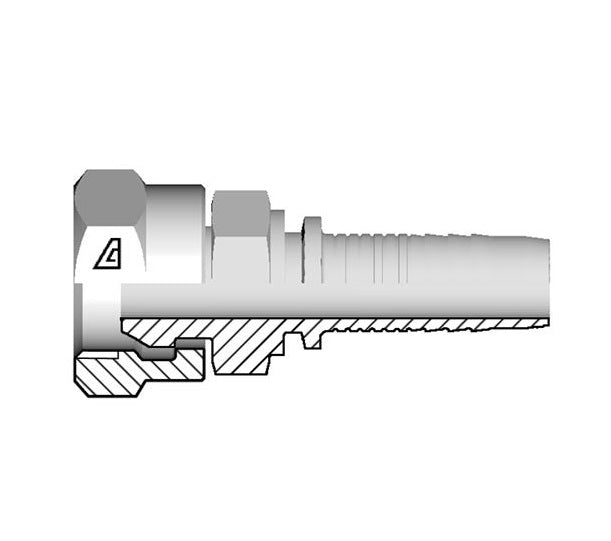

A-1212-FPMS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Female NPSM Swivel 60° Seat | Steel

Name: A-1212-FPMS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Female NPSM Swivel 60° Seat | Steel
Brand: Kuriyama
SKU: A-1212-FPMS Kuriyama
Price: 14.98 USD
Availability: InStock

Save $5.99

$20.97

$20.97 - $20.97

$20.97

$14.98

$14.98 - $14.98

$14.98

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female NPSM Swivel 60° Seat

Specifications for Variant SKU: A-1212-FPMS Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Male NPSM
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0404-FPMS	04	1/4"	6.4mm	04	1/4-18	24.3mm	17mm	19mm	0.09 lbs
A-0606-FPMS	06	3/8"	9.5mm	06	3/8-18	24.8mm	19mm	22mm	0.14 lbs
A-0808-FPMS	08	1/2"	12.7mm	08	1/2-14	26.6mm	22mm	27mm	0.22 lbs
A-1012-FPMS	10	5/8"	15.9mm	12	3/4-14	28.6mm	27mm	32mm	0.25 lbs
A-1212-FPMS	12	3/4"	19.0mm	12	3/4-14	28.6mm	30mm	32mm	0.26 lbs
A-1616-FPMS	16	1"	25.4mm	16	1-11-1/2	35.4mm	36mm	38mm	0.37 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
