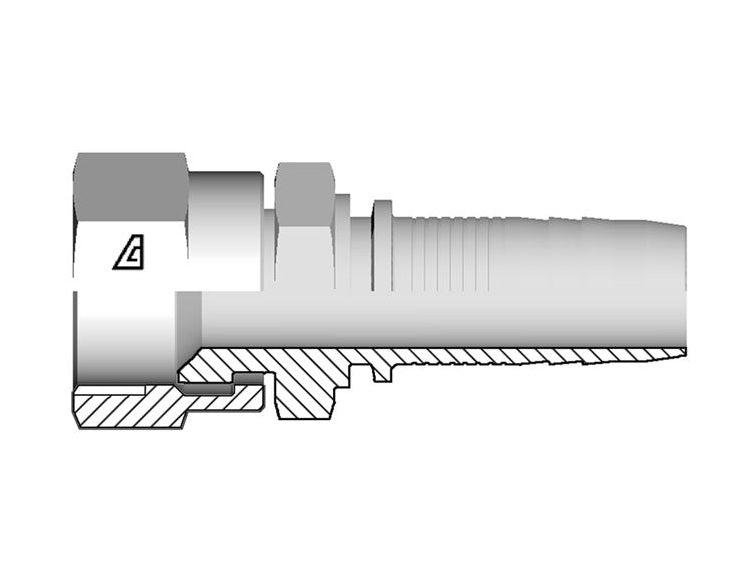

A-1212-FSAE Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | -12 Hose ID x -12 Female SAE 45° Seat | Steel

Save $4.02

$14.07

$14.07 - $14.07

$14.07

$10.05

$10.05 - $10.05

$10.05

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Double Hex | Hose Barb x Female SAE 45° Seat

Specifications for Variant SKU: A-1212-FSAE Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Hose Barb, 3/4in Female SAE 45 Flare
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Diameter CH1	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0506-FSAE	05	5/16"	7.9mm	06	5/8-18	22.3mm	16mm	22mm	0.13 lbs
A-0606-FSAE	06	3/8"	9.5mm	06	5/8-18	22.3mm	19mm	22mm	0.31 lbs
A-1012-FSAE	10	5/8"	15.9mm	12	1-1/16-14	28.1mm	27mm	32mm	0.34 lbs
A-1212-FSAE	12	3/4"	19.0mm	12	1-1/16-14	29.6mm	27mm	32mm	0.77 lbs
