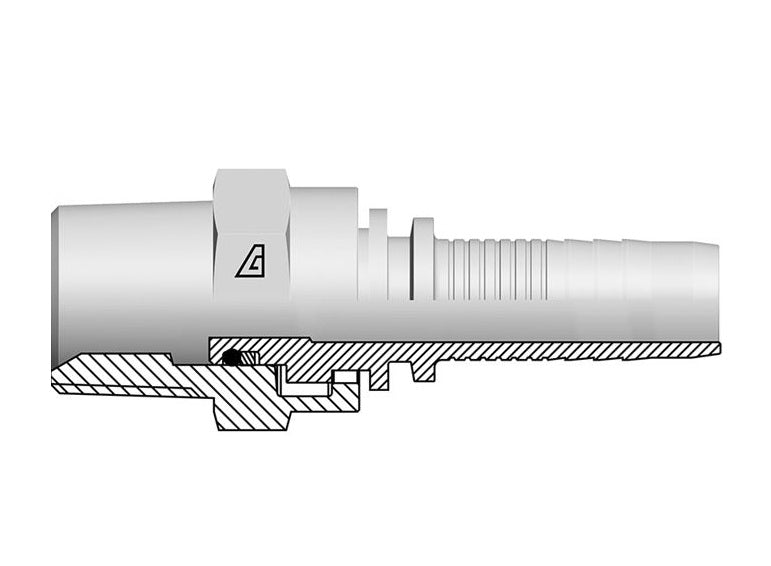

A-1212-MNPS-SS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Male NPTF Swivel 60° Seat | Stainless Steel

A-1212-MNPS-SS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -12 Hose ID x -12 Male NPTF Swivel 60° Seat | Stainless Steel

Save $19.52 Save $19.52
$68.33
$68.33 - $68.33
$68.33
$48.81
$48.81 - $48.81
$48.81

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Male NPTF Swivel 60° Seat
Specifications for Variant SKU: A-1212-MNPS-SS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 3/4in Male NPTF
Material(s): Stainless Steel
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0404-MNPS A-0404-MNPS-SS 04 1/4" 6.4mm 04 1/4-18 37.6mm 17mm 0.09 lbs
A-0406-MNPS - 04 1/4" 6.4mm 06 3/8-18 39.5mm 22mm 0.11 lbs
A-0604-MNPS - 06 3/8" 9.5mm 04 1/4-18 39.6mm 17mm 0.12 lbs
A-0606-MNPS A-0606-MNPS-SS 06 3/8" 9.5mm 06 3/8-18 37.5mm 22mm 0.15 lbs
A-0608-MNPS - 06 3/8" 9.5mm 08 1/2-14 38.0mm 25mm 0.16 lbs
A-0806-MNPS - 08 1/2" 12.7mm 06 3/8-18 38.3mm 22mm 0.17 lbs
A-0808-MNPS A-0808-MNPS-SS 08 1/2" 12.7mm 08 1/2-14 42.3mm 25mm 0.25 lbs
A-1212-MNPS A-1212-MNPS-SS 12 3/4" 19.0mm 12 3/4-14 50.1mm 32mm 0.31 lbs
A-1616-MNPS A-1616-MNPS-SS 16 1" 25.4mm 16 1-11-1/2 57.9mm 41mm 0.63 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
