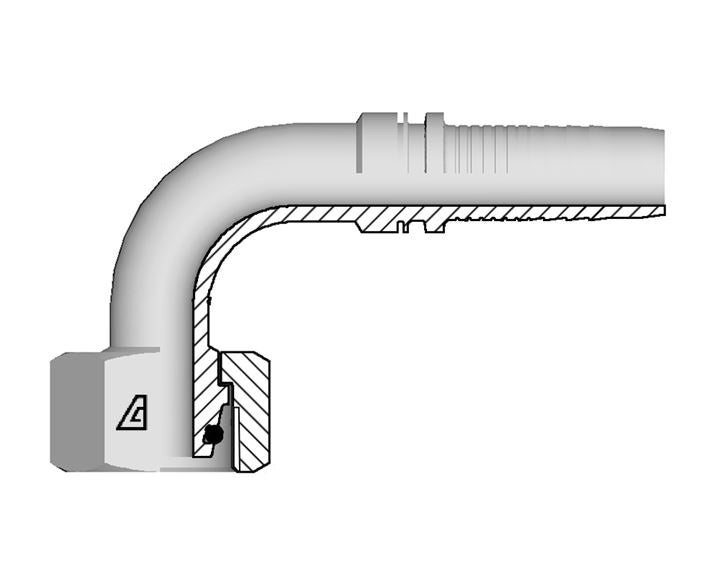

A-1236-FM9H Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | -12 Hose ID x M36 Female Metric O-Ring Swivel 24° Seat | Steel

A-1236-FM9H Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | -12 Hose ID x M36 Female Metric O-Ring Swivel 24° Seat | Steel

Save $11.28 Save $11.28
$39.47
$39.47 - $39.47
$39.47
$28.19
$28.19 - $28.19
$28.19

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | DIN 3865 Heavy | Hose Barb x Female Metric O-Ring Swivel 24° Seat
Specifications for Variant SKU: A-1236-FM9H Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Material(s): Steel
Applicable Specs & Approvals: DIN 3865
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread Tube OD C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) (mm) x TP (mm) (mm) (mm) (mm) (mm) lbs/each
A-0414-FM9H 04 1/4" 6.4mm M14x1.5 6mm 27.3mm 33.0mm 17mm 0.11 lbs
A-0418-FM9H 04 1/4" 6.4mm M18x1.5 10mm 26.8mm 34.0mm 22mm 0.13 lbs
A-0520-FM9H 05 5/16" 7.9mm M20x1.5 12mm 33.2mm 39.0mm 24mm 0.19 lbs
A-0620-FM9H 06 3/8" 9.5mm M20x1.5 12mm 34.3mm 38.5mm 24mm 0.18 lbs
A-0622-FM9H 06 3/8" 9.5mm M22x1.5 14mm 34.3mm 40.5mm 27mm 0.24 lbs
A-0824-FM9H 08 1/2" 12.7mm M24x1.5 16mm 39.8mm 41.5mm 30mm 0.31 lbs
A-1030-FM9H 10 5/8" 15.9mm M30x2 20mm 47.9mm 55.0mm 36mm 0.52 lbs
A-1236-FM9H 12 3/4" 19.0mm M36x2 25mm 50.6mm 59.5mm 46mm 0.88 lbs
A-1642-FM9H 16 1" 25.4mm M42x2 30mm 75.6mm 79.0mm 50mm 1.38 lbs
A-2052-FM9H 20 1-1/4" 31.8mm M52x2 38mm 94.0mm 92.0mm 60mm 2.09 lbs
