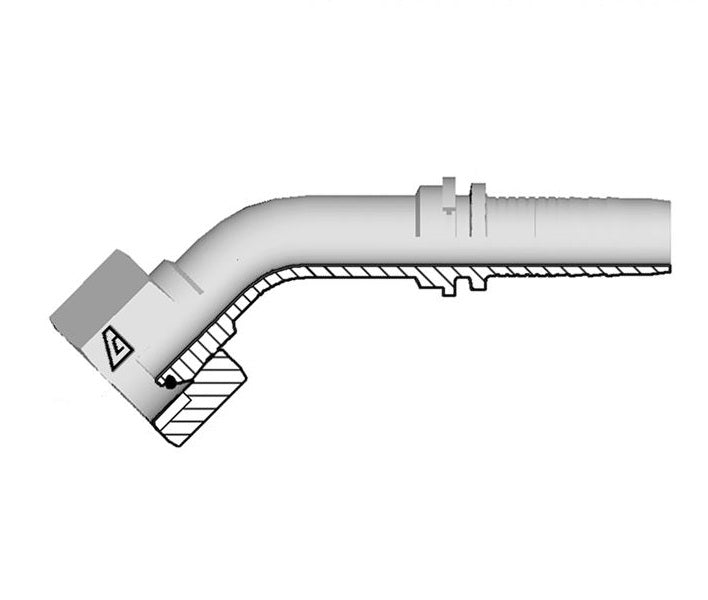

A-1616-FBO4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -16 Hose ID x -16 Female BSPP O-Ring Swivel 60° Cone | Steel

Name: A-1616-FBO4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -16 Hose ID x -16 Female BSPP O-Ring Swivel 60° Cone | Steel
Brand: Kuriyama
SKU: A-1616-FBO4 Kuriyama
Price: 23.78 USD
Availability: InStock

Save $9.51

$33.29

$33.29 - $33.29

$33.29

$23.78

$23.78 - $23.78

$23.78

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female BSP O-Ring Swivel 60° Cone

Specifications for Variant SKU: A-1616-FBO4 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	45 Degree
Ends Configuration:	1in Hose Barb, 1in Female BSPP
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0302-FBP4	03	3/16"	4.8mm	02	1/8-28	36.0mm	16.0mm	14mm	0.03 lbs
A-0402-FBP4	04	1/4"	6.4mm	02	1/8-28	42.0mm	16.0mm	14mm	0.04 lbs
A-0404-FBO4	04	1/4"	6.4mm	04	1/4-19	44.5mm	15.0mm	19mm	0.10 lbs
A-0406-FBO4	04	1/4"	6.4mm	06	3/8-19	43.0mm	16.9mm	22mm	0.14 lbs
A-0606-FBO4	06	3/8"	9.5mm	06	3/8-19	50.0mm	20.5mm	22mm	0.15 lbs
A-0608-FBO4	06	3/8"	9.5mm	08	1/2-14	53.5mm	21.0mm	27mm	0.15 lbs
A-0808-FBO4	08	1/2"	12.7mm	08	1/2-14	56.0mm	21.0mm	27mm	0.24 lbs
A-0810-FBO4	08	1/2"	12.7mm	10	5/8-14	61.0mm	23.0mm	27mm	0.34 lbs
A-0812-FBO4	08	1/2"	12.7mm	12	3/4-14	56.7mm	23.0mm	32mm	0.35 lbs
A-1010-FBO4	10	5/8"	15.9mm	10	5/8-14	64.0mm	21.5mm	27mm	0.24 lbs
A-1012-FBO4	10	5/8"	15.9mm	12	3/4-14	69.0mm	22.5mm	32mm	0.44 lbs
A-1212-FBO4	12	3/4"	19.0mm	12	3/4-14	67.6mm	28.0mm	32mm	0.44 lbs
A-1216-FBO4	12	3/4"	19.0mm	16	1-11	77.5mm	31.5mm	38mm	0.46 lbs
A-1616-FBO4	16	1"	25.4mm	16	1-11	72.5mm	34.0mm	38mm	1.00 lbs
A-1620-FBO4	16	1"	25.4mm	20	1-1/4-11	102.0mm	47.5mm	50mm	0.99 lbs
A-2020-FBO4	20	1-1/4"	31.8mm	20	1-1/4-11	101.0mm	40.0mm	50mm	1.32 lbs
A-2024-FBO4	20	1-1/4"	31.8mm	24	1-1/2-11	108.0mm	46.0mm	55mm	1.98 lbs
A-2424-FBO4	24	1-1/2"	38.1mm	24	1-1/2-14	111.0mm	46.0mm	55mm	2.66 lbs
A-2432-FBO4	24	1-1/2"	38.1mm	32	2-11	124.0mm	51.0mm	70mm	2.87 lbs
A-3232-FBO4	32	2"	50.8mm	32	2-11	154.0mm	60.0mm	70mm	3.94 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
