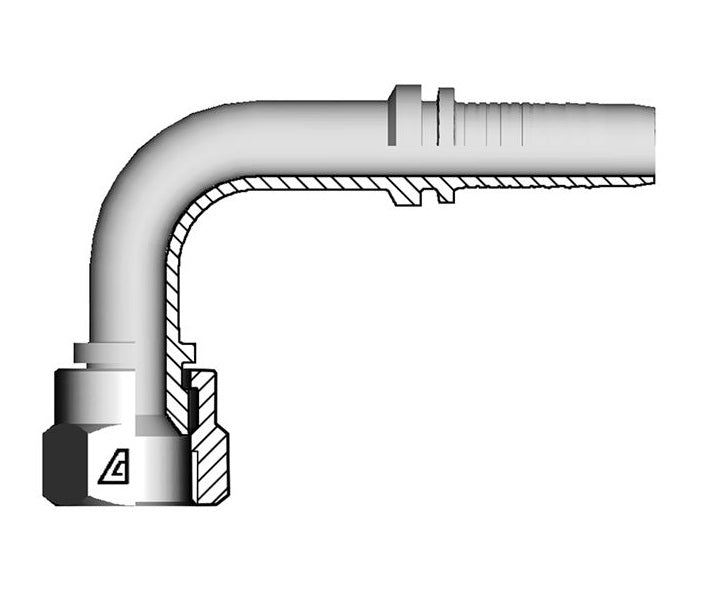

A-1616-FJ9M-SS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -16 Hose ID x -16 Female JIC 37° Swivel | Stainless Steel

A-1616-FJ9M-SS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | -16 Hose ID x -16 Female JIC 37° Swivel | Stainless Steel

Save $46.13 Save $46.13
$161.46
$161.46 - $161.46
$161.46
$115.33
$115.33 - $115.33
$115.33

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 90° Elbow | Medium Drop | Hose Barb x Female JIC 37° Seat Swivel
Specifications for Variant SKU: A-1616-FJ9M-SS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Hose Barb, 1in Female JIC
Material(s): Stainless Steel
Special Properties: Swivel, Medium Drop
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0304-FJ9M - 03 3/16" 4.8mm 04 7/16-20 33.5mm 32.0mm 16mm 0.10 lbs
A-0404-FJ9M A-0404-FJ9M-SS 04 1/4" 6.4mm 04 7/16-20 34.2mm 32.0mm 16mm 0.10 lbs
A-0405-FJ9M - 04 1/4" 6.4mm 05 1/2-20 25.7mm 30.0mm 17mm 0.09 lbs
A-0406-FJ9M - 04 1/4" 6.4mm 06 9/16-18 28.5mm 38.0mm 19mm 0.11 lbs
A-0505-FJ9M - 05 5/16" 7.9mm 05 1/2-20 34.7mm 35.0mm 17mm 0.14 lbs
A-0506-FJ9M - 05 5/16" 7.9mm 06 9/16-18 33.2mm 35.0mm 19mm 0.14 lbs
A-0606-FJ9M A-0606-FJ9M-SS 06 3/8" 9.5mm 06 9/16-18 31.3mm 35.0mm 19mm 0.15 lbs
A-0608-FJ9M - 06 3/8" 9.5mm 08 3/4-16 39.5mm 41.0mm 25mm 0.22 lbs
A-0808-FJ9M A-0808-FJ9M-SS 08 1/2" 12.7mm 08 3/4-16 37.2mm 40.0mm 25mm 0.26 lbs
A-0810-FJ9M - 08 1/2" 12.7mm 10 7/8-14 43.3mm 47.0mm 27mm 0.30 lbs
A-0812-FJ9M - 08 1/2" 12.7mm 12 1-1/16-12 47.8mm 58.0mm 32mm 0.40 lbs
A-1010-FJ9M A-1010-FJ9M-SS 10 5/8" 15.9mm 10 7/8-14 49.4mm 48.0mm 27mm 0.40 lbs
A-1012-FJ9M - 10 5/8" 15.9mm 12 1-1/16-12 47.9mm 58.0mm 32mm 0.48 lbs
A-1212-FJ9M A-1212-FJ9M-SS 12 3/4" 19.0mm 12 1-1/16-12 52.4mm 54.0mm 32mm 0.68 lbs
A-1216-FJ9M - 12 3/4" 19.0mm 16 1-5/16-12 52.6mm 72.0mm 38mm 0.79 lbs
A-1616-FJ9M A-1616-FJ9M-SS 16 1" 25.4mm 16 1-5/16-12 72.6mm 71.5mm 38mm 1.01 lbs
A-1620-FJ9M - 16 1" 25.4mm 20 1-5/8-12 72.6mm 78.5mm 50mm 1.48 lbs
A-2020-FJ9M - 20 1-1/4" 31.8mm 20 1-5/8-12 82.4mm 78.0mm 50mm 1.68 lbs
A-2024-FJ9M - 20 1-1/4" 31.8mm 24 1-7/8-12 94.0mm 82.0mm 55mm 2.00 lbs
A-2424-FJ9M - 24 1-1/2" 38.1mm 24 1-7/8-12 95.3mm 92.0mm 55mm 2.38 lbs
A-3232-FJ9M - 32 2" 50.8mm 32 2-1/2-12 129.5mm 140.0mm 70mm 5.24 lbs
