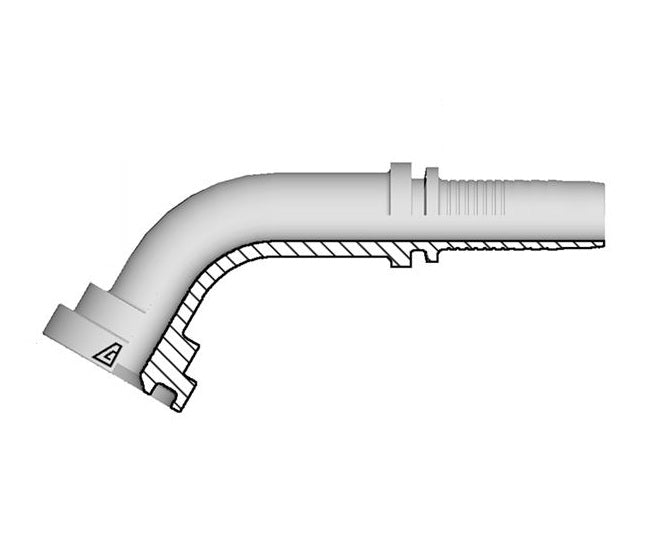

A-1620-C616 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 60° Elbow | -16 Hose ID x -20 Code 61 Flange | Steel

A-1620-C616 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 60° Elbow | -16 Hose ID x -20 Code 61 Flange | Steel

Save $20.64 Save $20.64
$72.23
$72.23 - $72.23
$72.23
$51.59
$51.59 - $51.59
$51.59

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 60° Elbow | Hose Barb x Code 61 Flange
Specifications for Variant SKU: A-1620-C616 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 60 Degree
Ends Configuration: 1in Hose Barb, 1-1/4in Code 61 Flange
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max. Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
A-1212-C616 12 3/4" 19.0mm 1.19" 30.2mm 86.0mm 37.0mm 5000 PSI 0.29 lbs
A-1216-C616 12 3/4" 19.0mm 1.75" 44.5mm 102.0mm 44.0mm 5000 PSI 0.43 lbs
A-1616-C616 16 1" 25.4mm 1.75" 44.5mm 101.0mm 47.0mm 5000 PSI 0.55 lbs
A-1620-C616 16 1" 25.4mm 2.00" 50.8mm 106.5mm 43.5mm 5000 PSI 0.65 lbs
A-2020-C616 20 1-1/4" 31.8mm 2.00" 50.8mm 129.5mm 56.5mm 5000 PSI 0.71 lbs
A-2424-C616 24 1-1/2" 38.1mm 2.38" 60.3mm 151.0mm 57.0mm 3000 PSI 2.95 lbs
A-3232-C616 32 2" 50.8mm 2.81" 71.4mm 164.4mm 92.0mm 3000 PSI 4.30 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
