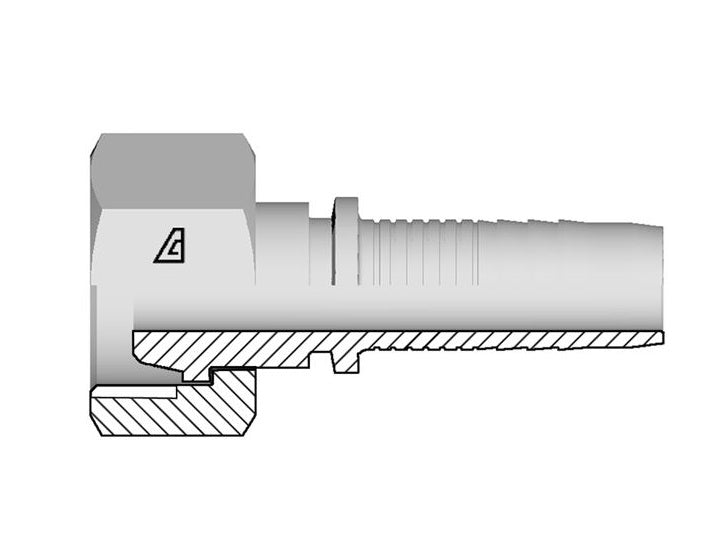

A-1638-FM6S Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3863 | -16 Hose ID x M38 Female Metric Swivel 60° Cone | Steel

Save $14.02

$49.06

$49.06 - $49.06

$49.06

$35.04

$35.04 - $35.04

$35.04

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | DIN 3863 | Hose Barb x Female Metric Swivel 60° Cone

Specifications for Variant SKU: A-1638-FM6S Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	Straight
Material(s):	Steel
Applicable Specs & Approvals:	DIN 3863
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread	Tube OD	C Cut-Off Factor	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(mm) x TP (mm)	(mm)	(mm)	(mm)	lbs/each
A-1230-FM6S	12	3/4"	19.0mm	M30x1.5	22.2mm	36mm	0.31 lbs
A-1638-FM6S	16	1"	25.4mm	M38x1.5	28.0mm	46mm	0.49 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.

Shop Parts by Kuriyama
