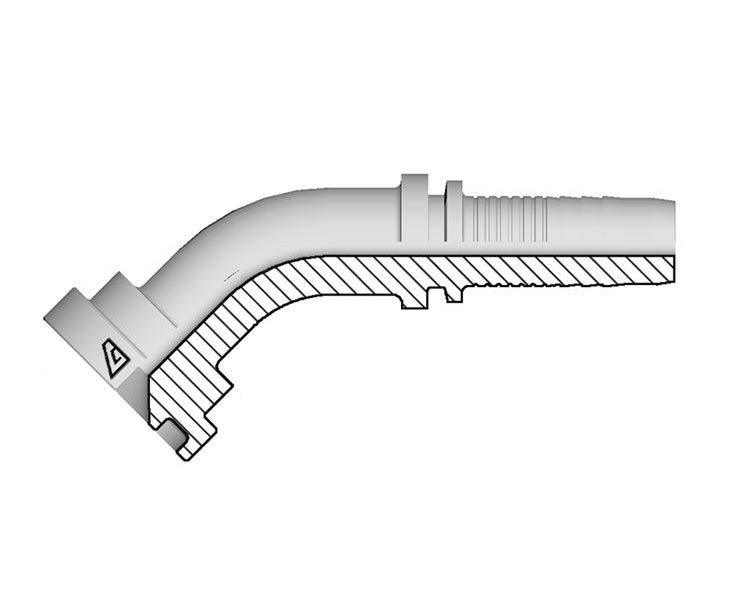

A-2020-C614 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -20 Hose ID x -20 Code 61 Flange | Steel

A-2020-C614 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | -20 Hose ID x -20 Code 61 Flange | Steel

Save $27.28 Save $27.28
$95.48
$95.48 - $95.48
$95.48
$68.20
$68.20 - $68.20
$68.20

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 45° Elbow | Hose Barb x Code 61 Flange
Specifications for Variant SKU: A-2020-C614 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Code 61 Flange
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series

Kuriyama of America Inc.
Alfagomma | Two-Piece Fittings | A Series | 45° O-Ring Flange SAE J518 Code 61

Inserts for two-piece fittings - US End Configurations
Part Number Dash Size Hose ID Size Q Flange CCut-OffFactor D Drop Max WorkingPressure Weight
(in) (mm) (in) (mm) (mm) (mm) (psi) (lbs/each)
A-0808-C614 08 1/2" 12.7mm 1.19" 30.2mm 43.7mm 22.0mm 5000 0.27 lbs
A-0812-C614 08 1/2" 12.7mm 1.50" 38.1mm 50.4mm 26.0mm 5000 0.38 lbs
A-1012-C614 10 5/8" 15.9mm 1.50" 38.1mm 55.1mm 26.0mm 5000 0.40 lbs
A-1212-C614 12 3/4" 19.0mm 1.50" 38.1mm 63.8mm 32.0mm 5000 0.50 lbs
A-1216-C614 12 3/4" 19.0mm 1.75" 44.5mm 68.0mm 29.0mm 5000 0.60 lbs
A-1616-C614 16 1" 25.4mm 1.75" 44.5mm 72.8mm 33.5mm 5000 0.85 lbs
A-1620-C614 16 1" 25.4mm 2.00" 50.8mm 72.3mm 36.0mm 4000 0.92 lbs
A-2020-C614 20 1-1/4" 31.8mm 2.00" 50.8mm 85.2mm 37.5mm 4000 1.13 lbs
A-2024-C614 20 1-1/4" 31.8mm 2.38" 60.3mm 92.8mm 40.0mm 3000 1.27 lbs
A-2424-C614 24 1-1/2" 38.1mm 2.38" 60.3mm 105.4mm 48.0mm 3000 1.32 lbs
A-2432-C614 24 1-1/2" 38.1mm 2.81" 71.4mm 124.3mm 55.5mm 3000 2.65 lbs
A-3232-C614 32 2" 50.8mm 2.81" 71.4mm 129.5mm 47.5mm 3000 3.48 lbs
A-4040-C614 40 2-1/2" 63.5mm 3.31" 84.1mm 162.0mm 115.0mm 2500 3.80 lbs
