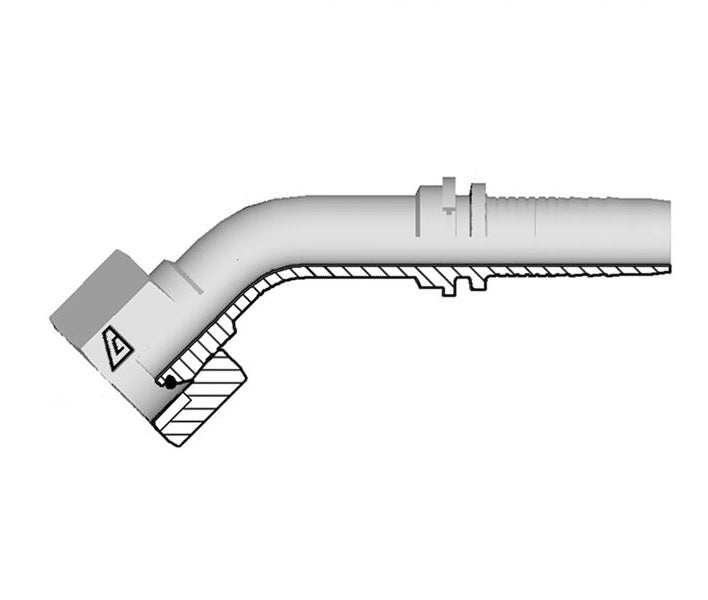

A-2020-FBO4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -20 Hose ID x -20 Female BSPP O-Ring Swivel 60° Cone | Steel

A-2020-FBO4 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -20 Hose ID x -20 Female BSPP O-Ring Swivel 60° Cone | Steel

Save $19.83 Save $19.83
$69.40
$69.40 - $69.40
$69.40
$49.57
$49.57 - $49.57
$49.57

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female BSP O-Ring Swivel 60° Cone
Specifications for Variant SKU: A-2020-FBO4 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Female BSPP
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 D
Drop		 Hex
Diameter
CH2		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) (mm) lbs/each
A-0302-FBP4 03 3/16" 4.8mm 02 1/8-28 36.0mm 16.0mm 14mm 0.03 lbs
A-0402-FBP4 04 1/4" 6.4mm 02 1/8-28 42.0mm 16.0mm 14mm 0.04 lbs
A-0404-FBO4 04 1/4" 6.4mm 04 1/4-19 44.5mm 15.0mm 19mm 0.10 lbs
A-0406-FBO4 04 1/4" 6.4mm 06 3/8-19 43.0mm 16.9mm 22mm 0.14 lbs
A-0606-FBO4 06 3/8" 9.5mm 06 3/8-19 50.0mm 20.5mm 22mm 0.15 lbs
A-0608-FBO4 06 3/8" 9.5mm 08 1/2-14 53.5mm 21.0mm 27mm 0.15 lbs
A-0808-FBO4 08 1/2" 12.7mm 08 1/2-14 56.0mm 21.0mm 27mm 0.24 lbs
A-0810-FBO4 08 1/2" 12.7mm 10 5/8-14 61.0mm 23.0mm 27mm 0.34 lbs
A-0812-FBO4 08 1/2" 12.7mm 12 3/4-14 56.7mm 23.0mm 32mm 0.35 lbs
A-1010-FBO4 10 5/8" 15.9mm 10 5/8-14 64.0mm 21.5mm 27mm 0.24 lbs
A-1012-FBO4 10 5/8" 15.9mm 12 3/4-14 69.0mm 22.5mm 32mm 0.44 lbs
A-1212-FBO4 12 3/4" 19.0mm 12 3/4-14 67.6mm 28.0mm 32mm 0.44 lbs
A-1216-FBO4 12 3/4" 19.0mm 16 1-11 77.5mm 31.5mm 38mm 0.46 lbs
A-1616-FBO4 16 1" 25.4mm 16 1-11 72.5mm 34.0mm 38mm 1.00 lbs
A-1620-FBO4 16 1" 25.4mm 20 1-1/4-11 102.0mm 47.5mm 50mm 0.99 lbs
A-2020-FBO4 20 1-1/4" 31.8mm 20 1-1/4-11 101.0mm 40.0mm 50mm 1.32 lbs
A-2024-FBO4 20 1-1/4" 31.8mm 24 1-1/2-11 108.0mm 46.0mm 55mm 1.98 lbs
A-2424-FBO4 24 1-1/2" 38.1mm 24 1-1/2-14 111.0mm 46.0mm 55mm 2.66 lbs
A-2432-FBO4 24 1-1/2" 38.1mm 32 2-11 124.0mm 51.0mm 70mm 2.87 lbs
A-3232-FBO4 32 2" 50.8mm 32 2-11 154.0mm 60.0mm 70mm 3.94 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
