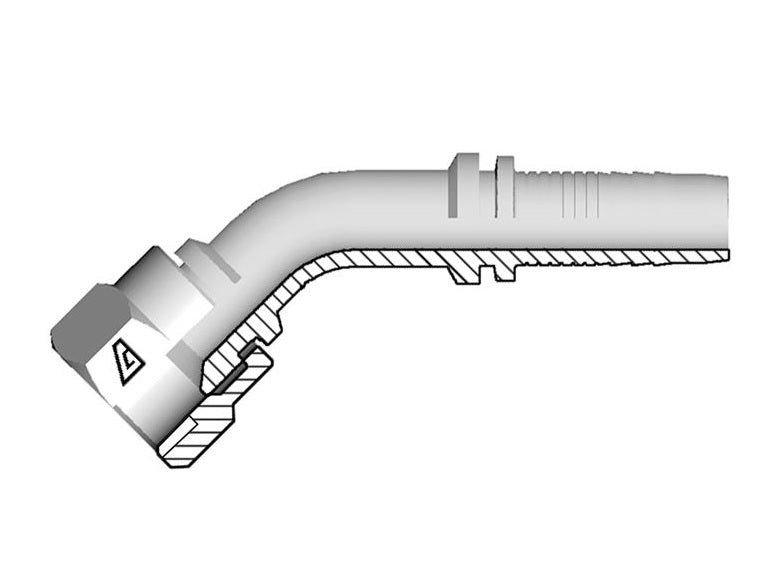

A-2020-FJ45 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | -20 Hose ID x -20 Female JIC 37° Swivel | Steel

Save $19.02

$66.58

$66.58 - $66.58

$66.58

$47.56

$47.56 - $47.56

$47.56

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | 45° Elbow | Hose Barb x Female JIC 37° Seat Swivel

Specifications for Variant SKU: A-2020-FJ45 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	45 Degree
Ends Configuration:	1-1/4in Hose Barb, 1-1/4in Female JIC
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			F Thread		C Cut-Off Factor	D Drop	Hex Diameter CH2	Weight
Steel Part Number	Dash Size	(in.)	(mm)	Dash Size	Size (in) - TPI	(mm)	(mm)	(mm)	lbs/each
A-0404-FJ45	04	1/4"	6.4mm	04	7/16-20	36.6mm	10.0mm	16mm	0.08 lbs
A-0405-FJ45	04	1/4"	6.4mm	05	1/2-20	37.2mm	12.0mm	17mm	0.08 lbs
A-0406-FJ45	04	1/4"	6.4mm	06	9/16-18	39.4mm	11.0mm	19mm	0.10 lbs
A-0506-FJ45	05	5/16"	7.9mm	06	9/16-18	42.8mm	12.0mm	19mm	0.13 lbs
A-0606-FJ45	06	3/8"	9.5mm	06	9/16-18	46.3mm	11.0mm	19mm	0.13 lbs
A-0608-FJ45	06	3/8"	9.5mm	08	3/4-16	47.2mm	15.0mm	25mm	0.19 lbs
A-0808-FJ45	08	1/2"	12.7mm	08	3/4-16	51.6mm	15.0mm	25mm	0.23 lbs
A-0810-FJ45	08	1/2"	12.7mm	10	7/8-14	50.7mm	16.0mm	27mm	0.27 lbs
A-0812-FJ45	08	1/2"	12.7mm	12	1-1/16-12	57.0mm	21.0mm	32mm	0.39 lbs
A-1010-FJ45	10	5/8"	15.9mm	10	7/8-14	62.2mm	19.0mm	27mm	0.39 lbs
A-1012-FJ45	10	5/8"	15.9mm	12	1-1/16-12	68.6mm	21.0mm	32mm	0.39 lbs
A-1212-FJ45	12	3/4"	19.0mm	12	1-1/16-12	67.5mm	21.0mm	32mm	0.62 lbs
A-1214-FJ45	12	3/4"	19.0mm	14	1-3/16-12	67.6mm	23.0mm	36mm	0.51 lbs
A-1216-FJ45	12	3/4"	19.0mm	16	1-5/16-12	71.4mm	26.0mm	38mm	0.62 lbs
A-1616-FJ45	16	1"	25.4mm	16	1-5/16-12	79.5mm	24.0mm	38mm	0.88 lbs
A-1620-FJ45	16	1"	25.4mm	20	1-5/8-12	81.9mm	37.0mm	50mm	1.28 lbs
A-2020-FJ45	20	1-1/4"	31.8mm	20	1-5/8-12	97.1mm	37.0mm	50mm	1.56 lbs
A-2024-FJ45	20	1-1/4"	31.8mm	24	1 7/8-12	107.0mm	39.5mm	55mm	1.74 lbs
A-2424-FJ45	24	1-1/2"	38.1mm	24	1-7/8-12	112.7mm	43.0mm	55mm	2.09 lbs
A-3232-FJ45	32	2"	50.8mm	32	2-1/2-12	159.9mm	67.0mm	70mm	2.21 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
