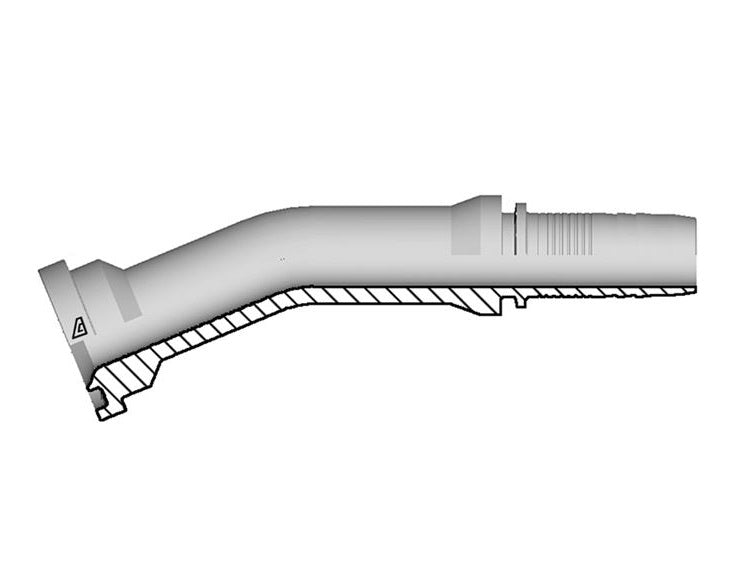

A-2024-C613 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -20 Hose ID x -24 Code 61 Flange | Steel

A-2024-C613 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -20 Hose ID x -24 Code 61 Flange | Steel

Save $28.03 Save $28.03
$98.10
$98.10 - $98.10
$98.10
$70.07
$70.07 - $70.07
$70.07

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 30° Elbow | Hose Barb x Code 61 Flange
Specifications for Variant SKU: A-2024-C613 Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): 30 Degree
Ends Configuration: 1-1/4in Hose Barb, 1-1/2in Code 61 Flange
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) lbs/each
A-1212-C613 12 3/4" 19.0mm 1.50" 38.1mm 67.7mm 12.0mm 0.62 lbs
A-1216-C613 12 3/4" 19.0mm 1.75" 44.5mm 70.7mm 12.0mm 0.74 lbs
A-1616-C613 16 1" 25.4mm 1.75" 44.5mm 69.3mm 12.0mm 0.84 lbs
A-1620-C613 16 1" 25.4mm 2.00" 50.8mm 67.1mm 12.0mm 0.93 lbs
A-2020-C613 20 1-1/4" 31.8mm 2.00" 50.8mm 74.3mm 12.0mm 1.10 lbs
A-2024-C613 20 1-1/4" 31.8mm 2.38" 60.3mm 81.5mm 13.0mm 1.26 lbs
A-2424-C613 24 1-1/2" 38.1mm 2.38" 60.3mm 136.0mm 23.0mm 1.90 lbs
A-2432-C613 24 1-1/2" 38.1mm 2.81" 71.4mm 136.9mm 29.5mm 2.54 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
