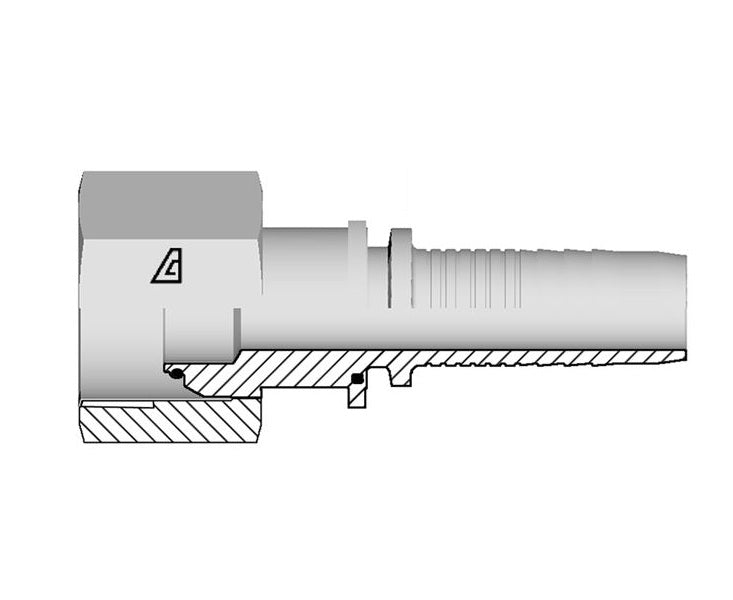

A-2024-FBPO Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -20 Hose ID x -24 Female BSPP O-Ring Swivel 60° Cone | Steel

A-2024-FBPO Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -20 Hose ID x -24 Female BSPP O-Ring Swivel 60° Cone | Steel

Save $16.86 Save $16.86
$59.00
$59.00 - $59.00
$59.00
$42.14
$42.14 - $42.14
$42.14

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Female BSP O-Ring Swivel 60° Cone
Specifications for Variant SKU: A-2024-FBPO Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 1-1/2in Female BSPP
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size F Thread C
Cut-Off Factor		 Hex
Diameter
CH1		 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
A-0304-FBPO 03 3/16" 4.8mm 04 1/4-19 16.0mm 19mm 0.04 lbs
A-0402-FBPP 04 1/4" 6.4mm 02 1/8-28 14.5mm 14mm 0.04 lbs
A-0404-FBPO 04 1/4" 6.4mm 04 1/4-19 16.0mm 19mm 0.06 lbs
A-0406-FBPO 04 1/4" 6.4mm 06 3/8-19 16.0mm 22mm 0.09 lbs
A-0504-FBPO 05 5/16" 7.9mm 04 1/4-19 17.3mm 19mm 0.07 lbs
A-0506-FBPO 05 5/16" 7.9mm 06 3/8-19 18.0mm 22mm 0.09 lbs
A-0604-FBPO 06 3/8" 9.5mm 04 1/4-19 17.3mm 19mm 0.09 lbs
A-0606-FBPO 06 3/8" 9.5mm 06 3/8-19 17.0mm 22mm 0.10 lbs
A-0608-FBPO 06 3/8" 9.5mm 08 1/2-14 17.0mm 27mm 0.15 lbs
A-0806-FBPO 08 1/2" 12.7mm 06 3/8-19 18.6mm 22mm 0.13 lbs
A-0808-FBPO 08 1/2" 12.7mm 08 1/2-14 18.0mm 27mm 0.16 lbs
A-0810-FBPO 08 1/2" 12.7mm 10 5/8-14 17.0mm 27mm 0.19 lbs
A-0812-FBPO 08 1/2" 12.7mm 12 3/4-14 22.0mm 32mm 0.22 lbs
A-1010-FBPO 10 5/8" 15.9mm 10 5/8-14 17.1mm 27mm 0.21 lbs
A-1012-FBPO 10 5/8" 15.9mm 12 3/4-14 20.0mm 32mm 0.26 lbs
A-1212-FBPO 12 3/4" 19.0mm 12 3/4-14 20.6mm 32mm 0.26 lbs
A-1216-FBPO 12 3/4" 19.0mm 16 1-11 23.9mm 38mm 0.44 lbs
A-1616-FBPO 16 1" 25.4mm 16 1-11 23.9mm 38mm 0.44 lbs
A-1620-FBPO 16 1" 25.4mm 20 1-1/4-11 30.5mm 50mm 0.90 lbs
A-2020-FBPO 20 1-1/4" 31.8mm 20 1-1/4-11 32.0mm 50mm 0.98 lbs
A-2024-FBPO 20 1-1/4" 31.8mm 24 1-1/2-11 41.9mm 55mm 1.32 lbs
A-2424-FBPO 24 1-1/2" 38.1mm 24 1-1/2-11 33.8mm 55mm 1.65 lbs
A-2432-FBPO 24 1-1/2" 38.1mm 32 2-11 36.0mm 70mm 1.98 lbs
A-3232-FBPO 32 2" 50.8mm 32 2-11 34.0mm 70mm 2.12 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
