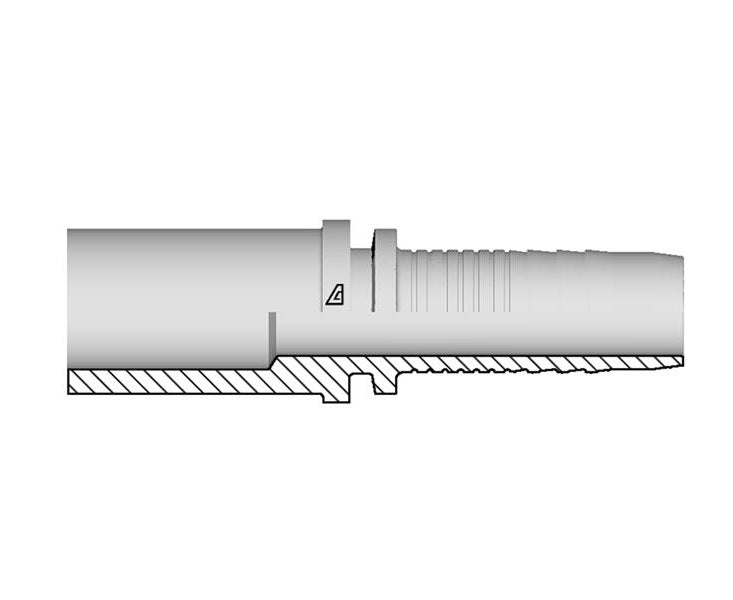

A-2038-MSPS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -20 Hose ID x M38 Metric Standpipe | Steel

A-2038-MSPS Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | -20 Hose ID x M38 Metric Standpipe | Steel

Save $11.78 Save $11.78
$41.24
$41.24 - $41.24
$41.24
$29.46
$29.46 - $29.46
$29.46

Kuriyama of America Inc.
Alfagomma | A Series | Two-Piece Hydraulic Hose Fitting | Hose Barb x Metric Standpipe
Specifications for Variant SKU: A-2038-MSPS Kuriyama
Brand: Alfagomma
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Hose Barb, 38mm Tube Stub
Material(s): Steel
Compatible with the following Series: PF354 Series  |   PF354NC Series  |   PFP354 Series  |   PFP354NC Series  |   PF267 Series  |   PF267NC Series  |   PF528 Series  |   PF528NC Series  |   PF427 Series  |   PF427NC Series  |   PF354TL Series  |   PF354NCTL Series  |   PF267TL Series  |   PF267NCTL Series  |   PF528TL Series  |   PF528NCTL Series  |   PF321TC Series  |   PF344LMT Series
About A Series Fittings:
  • Two-piece insert for:
    • All wire and textile braided hoses.
    • Thermoplastic hose.
    • Flexor 4 and PTFE hose 3/16" thru 2".
    • Alfabiotech 3000 1-1/4" and 1-1/2".
    • Alfabiotech 4000 3/8" thru 1-1/4".
    • Some smaller ID spiral wire reinforced hoses.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Hose ID Size GI Tube OD C
Cut-Off Factor		 Weight
Dash
Size		 (in.) (mm) (mm) (mm) lbs/each
A-0306-MSPS 03 3/16" 4.8mm 6mm 27.8mm 0.02 lbs
A-0308-MSPS 03 3/16" 4.8mm 8mm 29.8mm 0.03 lbs
A-0406-MSPS 04 1/4" 6.4mm 6mm 28.3mm 0.02 lbs
A-0408-MSPS 04 1/4" 6.4mm 8mm 30.2mm 0.03 lbs
A-0410-MSPS 04 1/4" 6.4mm 10mm 32.2mm 0.04 lbs
A-0412-MSPS 04 1/4" 6.4mm 12mm 31.2mm 0.06 lbs
A-0510-MSPS 05 5/16" 7.9mm 10mm 30.2mm 0.04 lbs
A-0512-MSPS 05 5/16" 7.9mm 12mm 32.7mm 0.06 lbs
A-0610-MSPS 06 3/8" 9.5mm 10mm 30.3mm 0.04 lbs
A-0612-MSPS 06 3/8" 9.5mm 12mm 29.3mm 0.05 lbs
A-0614-MSPS 06 3/8" 9.5mm 14mm 35.8mm 0.09 lbs
A-0615-MSPS 06 3/8" 9.5mm 15mm 34.8mm 0.09 lbs
A-0812-MSPS 08 1/2" 12.7mm 12mm 32.1mm 0.10 lbs
A-0814-MSPS 08 1/2" 12.7mm 14mm 36.1mm 0.10 lbs
A-0815-MSPS 08 1/2" 12.7mm 15mm 32.1mm 0.10 lbs
A-0816-MSPS 08 1/2" 12.7mm 16mm 37.1mm 0.12 lbs
A-0818-MSPS 08 1/2" 12.7mm 18mm 36.0mm 0.12 lbs
A-1018-MSPS 10 5/8" 15.9mm 18mm 34.2mm 0.14 lbs
A-1020-MSPS 10 5/8" 15.9mm 20mm 44.2mm 0.20 lbs
A-1022-MSPS 10 5/8" 15.9mm 22mm 37.2mm 0.18 lbs
A-1220-MSPS 12 3/4" 19.0mm 20mm 45.5mm 0.20 lbs
A-1222-MSPS 12 3/4" 19.0mm 22mm 36.5mm 0.21 lbs
A-1225-MSPS 12 3/4" 19.0mm 25mm 48.5mm 0.77 lbs
A-1625-MSPS 16 1" 25.4mm 25mm 51.4mm 0.41 lbs
A-1628-MSPS 16 1" 25.4mm 28mm 40.4mm 0.43 lbs
A-1630-MSPS 16 1" 25.4mm 30mm 54.4mm 0.23 lbs
A-1638-MSPS 16 1" 25.4mm 38mm 60.4mm 0.11 lbs
A-2030-MSPS 20 1-1/4" 31.8mm 30mm 56.0mm 0.66 lbs
A-2035-MSPS 20 1-1/4" 31.8mm 35mm 48.0mm 0.60 lbs
A-2038-MSPS 20 1-1/4" 31.8mm 38mm 62.0mm 0.83 lbs
A-2438-MSPS 24 1-1/2" 38.1mm 38mm 62.0mm 1.03 lbs
A-2442-MSPS 24 1-1/2" 38.1mm 42mm 52.0mm 0.86 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
