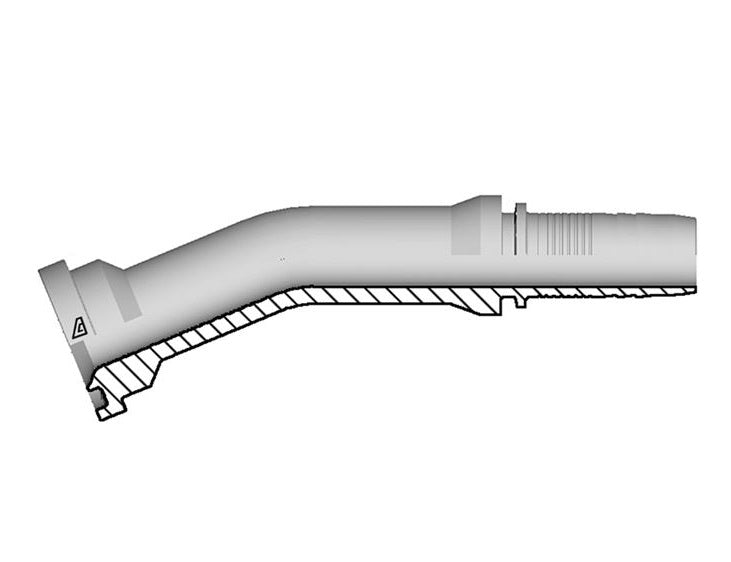

A-2424-C612 Alfagomma by Kuriyama | A Series | Two-Piece Hydraulic Hose Fitting | SAE J518 | 22° Elbow | -24 Hose ID x -24 Code 61 Flange | Steel

Save $34.79

$121.76

$121.76 - $121.76

$121.76

$86.97

$86.97 - $86.97

$86.97

Specifications for Variant SKU: A-2424-C612 Kuriyama
Brand:	Alfagomma
Series:	A Series
Shape (Orientation):	22 Degree
Ends Configuration:	1-1/2in Hose Barb, 1-1/2in Code 61 Flange
Material(s):	Steel
Compatible with the following Series:	PF354 Series \| PF354NC Series \| PFP354 Series \| PFP354NC Series \| PF267 Series \| PF267NC Series \| PF528 Series \| PF528NC Series \| PF427 Series \| PF427NC Series \| PF354TL Series \| PF354NCTL Series \| PF267TL Series \| PF267NCTL Series \| PF528TL Series \| PF528NCTL Series \| PF321TC Series \| PF344LMT Series

About A Series Fittings:
Two-piece insert for: All wire and textile braided hoses. Thermoplastic hose. Flexor 4 and PTFE hose 3/16" thru 2". Alfabiotech 3000 1-1/4" and 1-1/2". Alfabiotech 4000 3/8" thru 1-1/4". Some smaller ID spiral wire reinforced hoses.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Weight
Steel Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	(mm)	lbs/each
A-1616-C612	16	1"	25.4mm	1.75"	44.5mm	86.4mm	12.0mm	1.01 lbs
A-2020-C612	20	1-1/4"	31.8mm	2.00"	50.8mm	100.6mm	16.0mm	1.29 lbs
A-2024-C612	20	1-1/4"	31.8mm	2.38"	60.3mm	117.0mm	20.5mm	1.54 lbs
A-2424-C612	24	1-1/2"	38.1mm	2.38"	60.3mm	133.5mm	22.0mm	1.79 lbs
