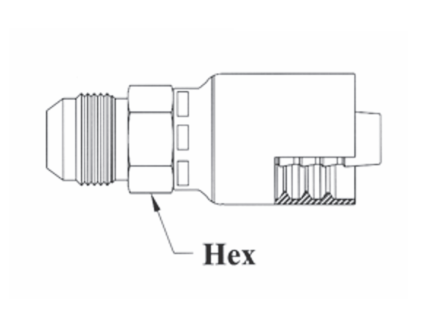

A08-4x5 Couplamatic A Series Coupling - JIC 37° - Male Solid - 1/4" Hose ID - 1/2x20 Thread

A08-4x5 by Couplamatic | A Series Coupling | 1/4" Hose ID x 1/2x20 Thread JIC 37° Male Solid | Straight

Save $2.41 Save $2.41
$6.02
$6.02 - $6.02
$6.02
$3.61
$3.61 - $3.61
$3.61

Couplamatic Systems Inc.
A Series - JIC 37° - Male Solid
Specifications for Variant SKU: A08-4x5 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Male JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A08-4x4 1/4" 7/16x20 1/4" 9/16" 1AA4MJ4 04Z-504
A08-4x5 1/4" 1/2x20 5/16" 9/16" - 04Z-505
A08-4x6 1/4" 9/16x18 3/8" 5/8" 1AA6MJ4 04Z-506
A08-6x6 3/8" 9/16x18 3/8" 11/16" 1AA6MJ6 06Z-506
A08-6x8 3/8" 3/4x16 1/2" 3/4" 1AA8MJ6 06Z-508
A08-6x10 3/8" 7/8x14 5/8" 7/8" 1AA10MJ6 06Z-510
A08-8x8 1/2" 3/4x16 1/2" 7/8" 1AA8MJ8 08Z-508
A08-8x10 1/2" 7/8x14 5/8" 7/8" 1AA10MJ8 08Z-510
A08-8x12 1/2" 1-1/16x12 3/4" 1-1/8" - 08Z-512
A08-10x10 5/8" 7/8x14 5/8" 15/16" 1AA10MJ10 10Z-510
A08-10x12 5/8" 1-1/16x12 3/4" 1-1/8" 1AA12MJ10 10Z-512
A08-12x12 3/4" 1-1/16x12 3/4" 1-1/8" 1AA12MJ12 12Z-512
A08-12x16 3/4" 1-5/16x12 1" 1-3/8" 1AA16MJ12 12Z-516
A08-16x16 1" 1-5/16x12 1" 1-3/8" 1AA16MJ16 16Z-516

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
