A10-12x12 Couplamatic A Series Coupling - BSPP - British Standard Parallel 60° Cone - Female Swivel - 3/4" Hose ID - G-3/4-14 Thread - 3/4" BSPP

A10-12x12 by Couplamatic | A Series Coupling | 3/4" Hose ID x G-3/4-14 Thread 60° Cone Female Swivel | 3/4" BSPP | Straight

Save $12.92 Save $12.92
$32.30
$32.30 - $32.30
$32.30
$19.38
$19.38 - $19.38
$19.38

Couplamatic Systems Inc.
A Series - BSPP - British Standard Parallel 60° Cone - Female Swivel
Specifications for Variant SKU: A10-12x12 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female BSPP, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.

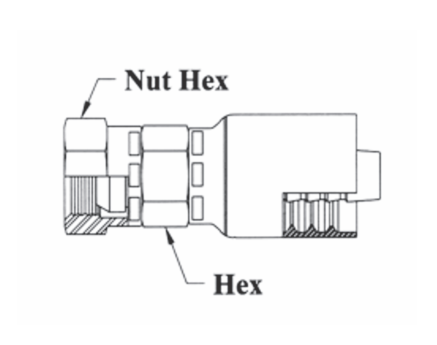

Part Number Hose ID BSPP Size Thread Size Hex Size Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A10-4x4 1/4" 1/4" G-1/4-19 9/16" 3/4" 1A4BF4 04Z-354
A10-6x6 3/8" 3/8" G-3/8-19 3/4" 7/8" 1A6BF6 06Z-356
A10-8x8 1/2" 1/2" G-1/2-14 7/8" 1" 1A8BF8 08Z-358
A10-12x12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4" 1A12BF12 12Z-362
A10-16x16 1" 1" G-1-11 1-3/8" 1-1/2" 1A16BF16 16Z-366

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
