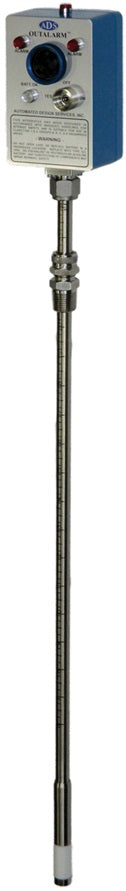

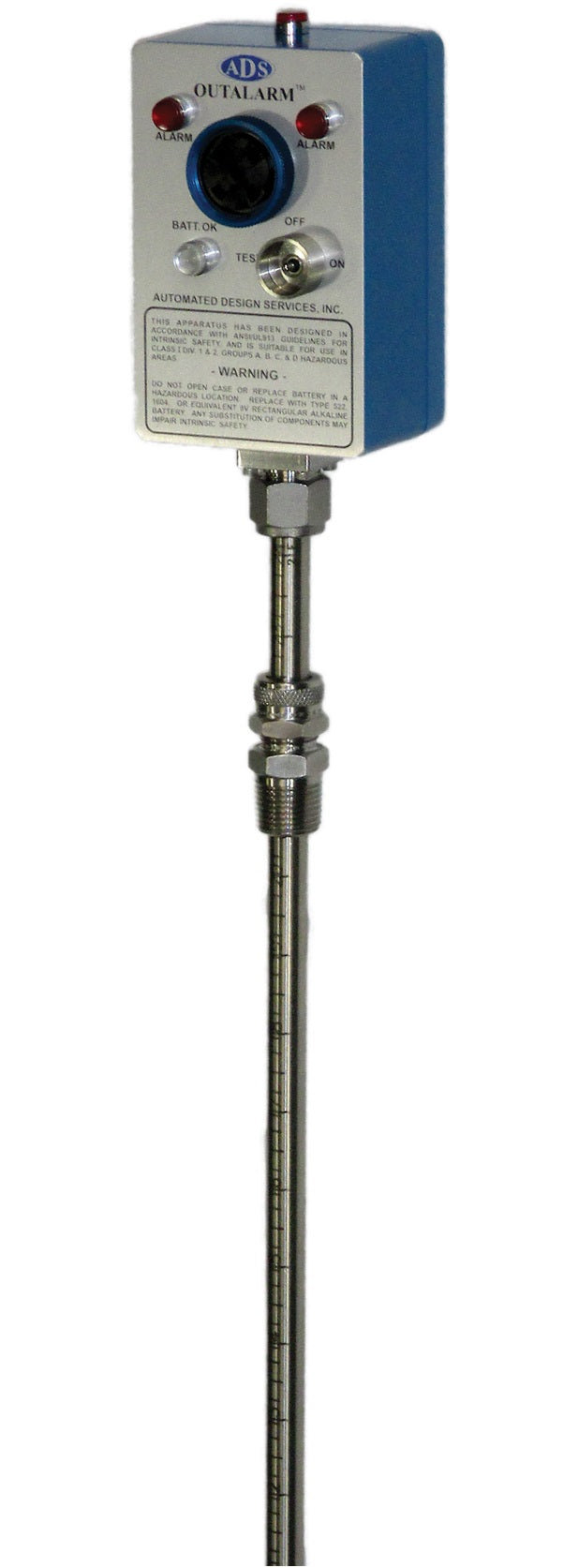

A100C24A by Dixon Valve | A100 Outalarm® | with Capacitance Probe | 24" Length

A100C24A by Dixon Valve | A100 Outalarm® | with Capacitance Probe | 24" Length

Save $211.37 Save $211.37
$1,902.32
$1,902.32 - $1,902.32
$1,902.32
$1,690.95
$1,690.95 - $1,690.95
$1,690.95

Dixon Valve
API-Compatible Dual Cord Junction Box

Specifically designed for liquid terminal operation on batch loading and overfill protection, tank cars, tanks trucks, marine barges; suitable for open and closed domes.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A100C24A Dixon
Series: A100 Outalarm
Features:
  • Totally self-contained; no wires, tubing, or external power.
  • Rugged weather- and corrosion-resistant construction.
  • No moving parts, tip sensitive phase shift digital capacitance sensor for conductive and non-conductive fluid; conductivity sensor available for conductive fluids.
  • Requires no calibration or adjustment.
  • Adjustable insertion length through a standard 1/2" NPT fitting.
  • High-intensity audible and flashing visual outputs.
  • Optional opto-isolated solid state contact output.
  • Full, hard, graduated, laser-engraved rod.
  • A100 operates up to 2,500 hours on a single 9V alkaline battery in standby mode.
  • Fail-safe, continuous battery monitor goes to alarm state on low battery.
  • Battery current drain <0.23 mA during standby; <60 mA in alarm state.
Materials:
  • Wetted materials: 316 stainless steel, PTFE standard.
Specifications:
  • Minimum dielectric constant: 1.8
  • Temperature range:
    • Capacitance probe: -14°F to 250°F (-26°C to 121°C)
    • High-temp capacitance probe: -14°F to 325°F (-26°C to 163°C)
    • Outalarm® monitor: -40°F to 150°F (-40°C to 65°C)
  • Activation point: 1/4" into liquid surface.
  • Compatible with any liquid or dry bulk material with a dielectric constant of 1.8 or greater.
  • Horn intensity: 101 dB at 2'.
  • Light output: three each 3,000 mcd high-intensity red flashing LEDs.
  • Pressure rating on standard unit: 50 PSI; consult Dixon® for applications up to 300 PSI.
Approvals:
  • Intrinsically safe design per ANSI/UL913 for Class I, Div I Groups A, B, C, and D Hazardous Areas.
Capacitance
250°F (121°C) Max
Part Number		 Hi-temp Capacitance
325°F (163°C) Max
Part Number		 Length
A100C12A - 12"
A100C24A - 24"
A100C36A - 36"
A100C48A A100HC48A 48"
A100C60A A100HC60A 60"
A100C72A A100HC72A 72"
A100C84A A100HC84A 84"
